Canister Vent Valve: Service and Repair

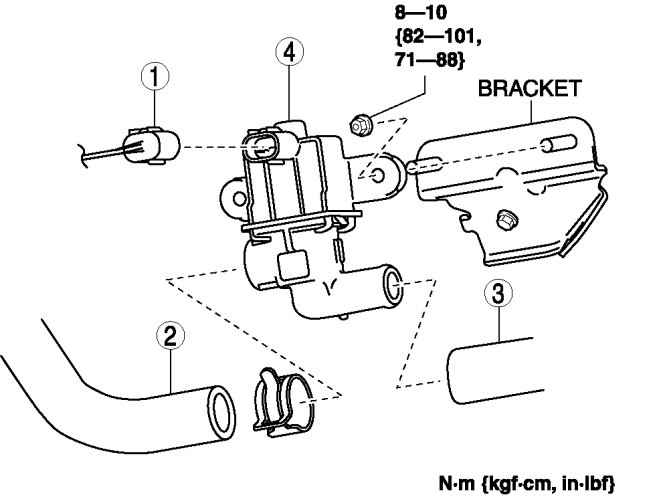

CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION [MZR 1.5]

1. Disconnect the negative battery cable. Removal and Replacement

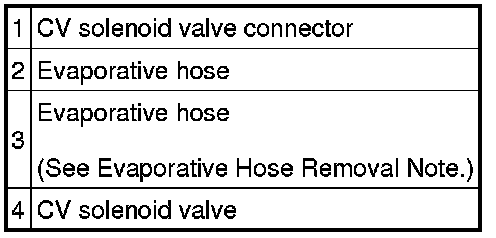

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.

Evaporative Hose Removal Note

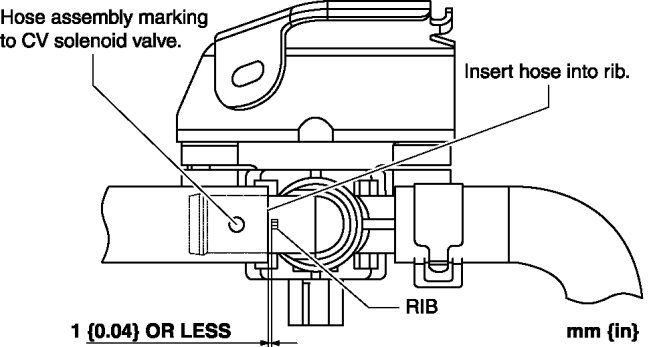

1. Install the evaporative hose as shown in the figure.
