Center Ventilator Grille Removal/Installation

CENTER VENTILATOR GRILLE REMOVAL/INSTALLATION

Removal

1. Route the wiring harness as shown in the figure and pull on the center ventilator grille in the direction of the arrow to remove it.






Installation

NOTE:
- The center ventilator grille service part is shipped with a center ventilator grille cover as a single unit. Before installing the center ventilator grille, remove the center ventilator grille cover.

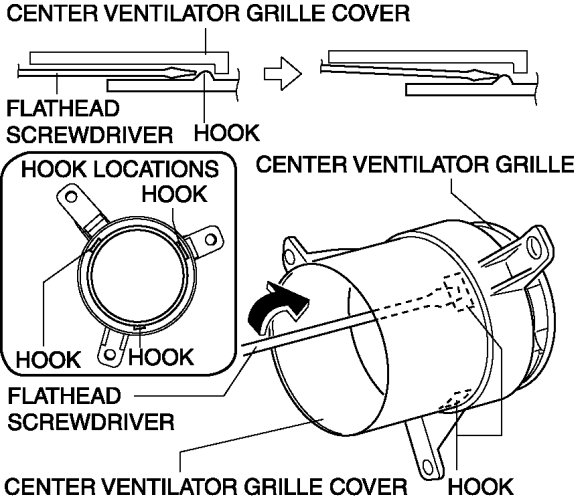

1. Insert a flathead screwdriver into the position shown in the figure.






2. Move a flathead screwdriver in the direction of the arrow and detach the hook, while pull the center ventilator grille.

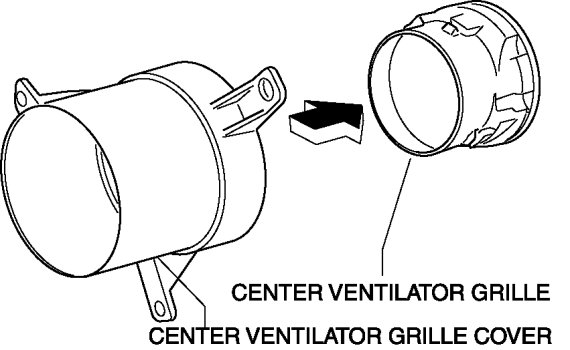

3. Remove the center ventilator grille in the direction of the arrow from the center ventilator grille cover.

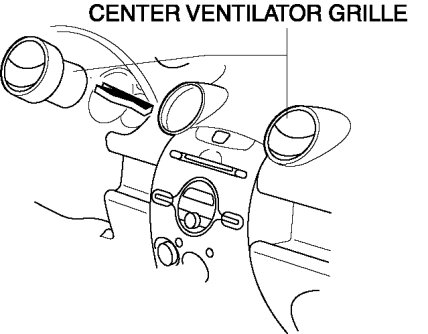

4. Push the center ventilator grille in the direction of the arrow and install it.
