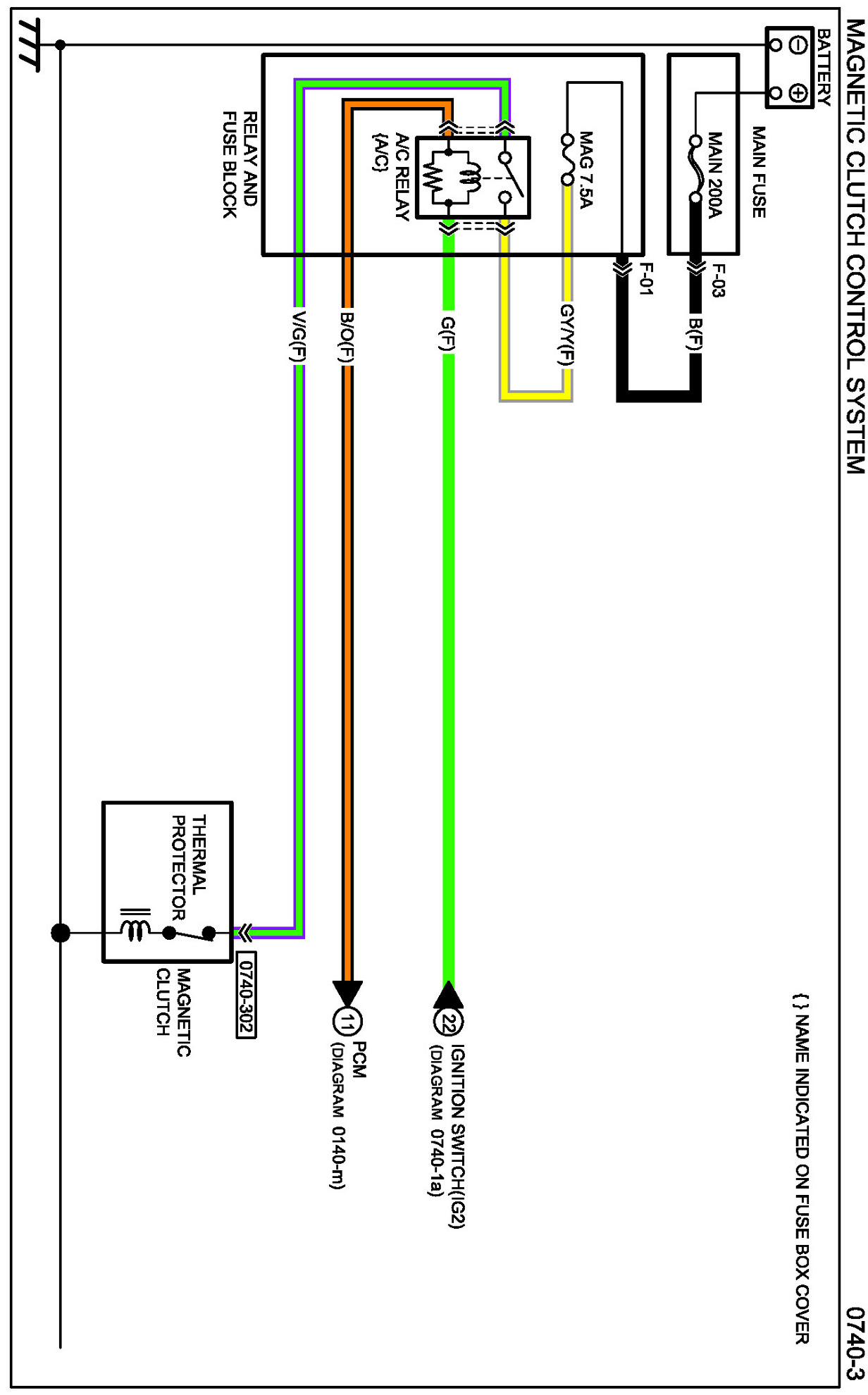

Diagram 0740-3 (Magnetic Clutch Control System)
Diagram 0740-3 (Magnetic Clutch Control System)
Diagram 0740-3:
