Front Parking Brake Cable Removal/Installation

FRONT PARKING BRAKE CABLE REMOVAL/INSTALLATION

1. Remove the rear console. Rear Console Removal/Installation

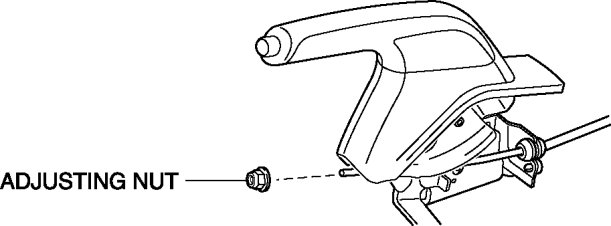

2. Remove the adjusting nut.






3. Remove the TWC. Service and Repair

4. Remove the insulator No.1. Service and Repair

5. Remove the front parking brake cable from the equalizer.

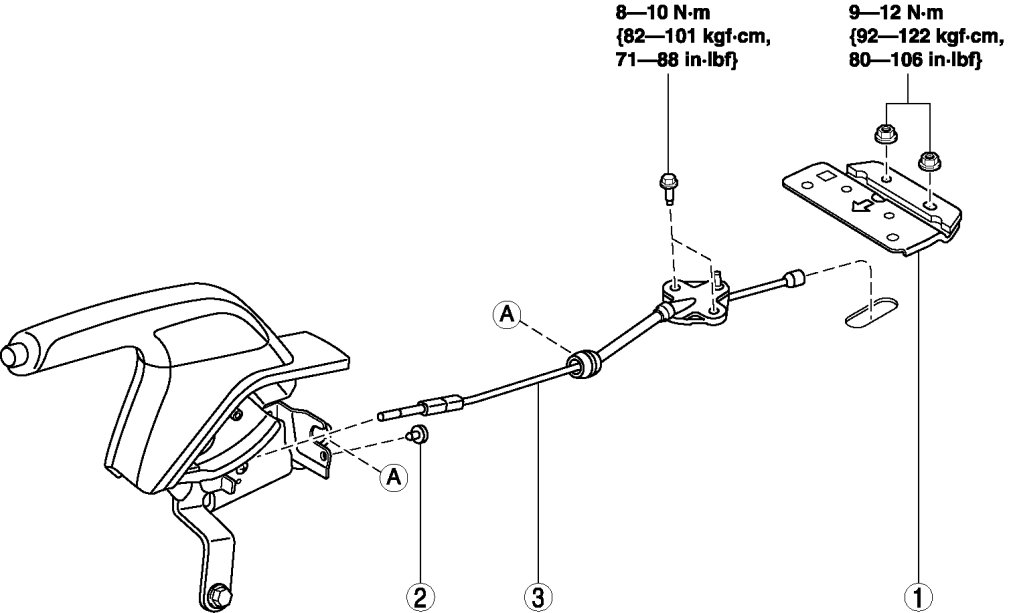

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

8. After installation, inspect the parking brake stroke and adjust if necessary. Testing and Inspection









Front Parking Brake Cable Removal Note

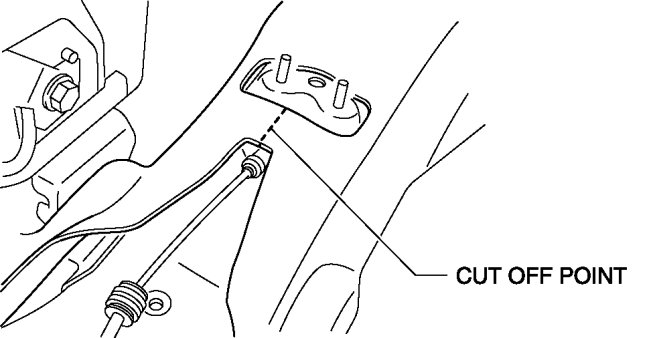

1. Separate the floor mat at the area shown in the figure.






2. Remove the front parking brake cable.
