A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1D35
B1D35

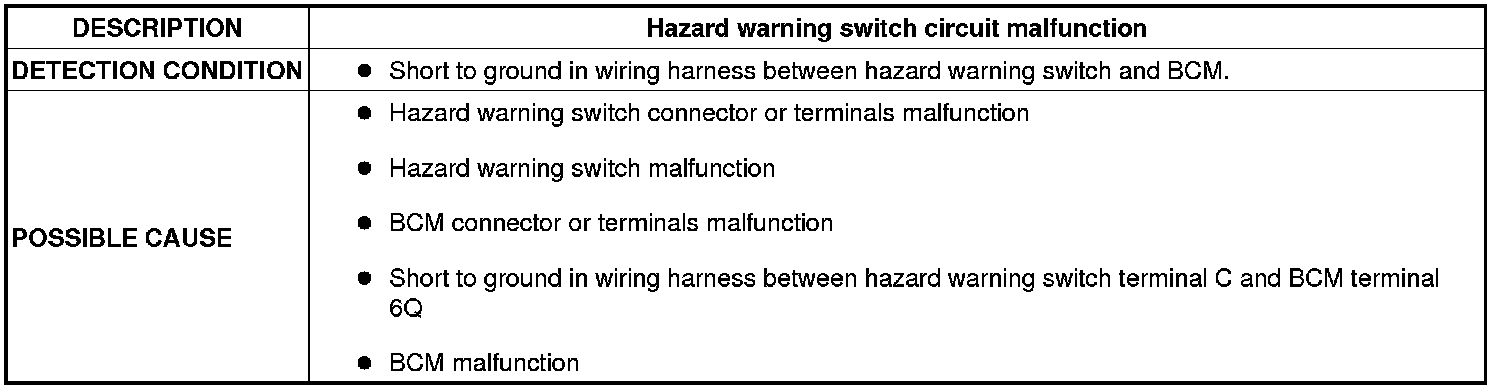

DTC B1D35:11 [BCM]

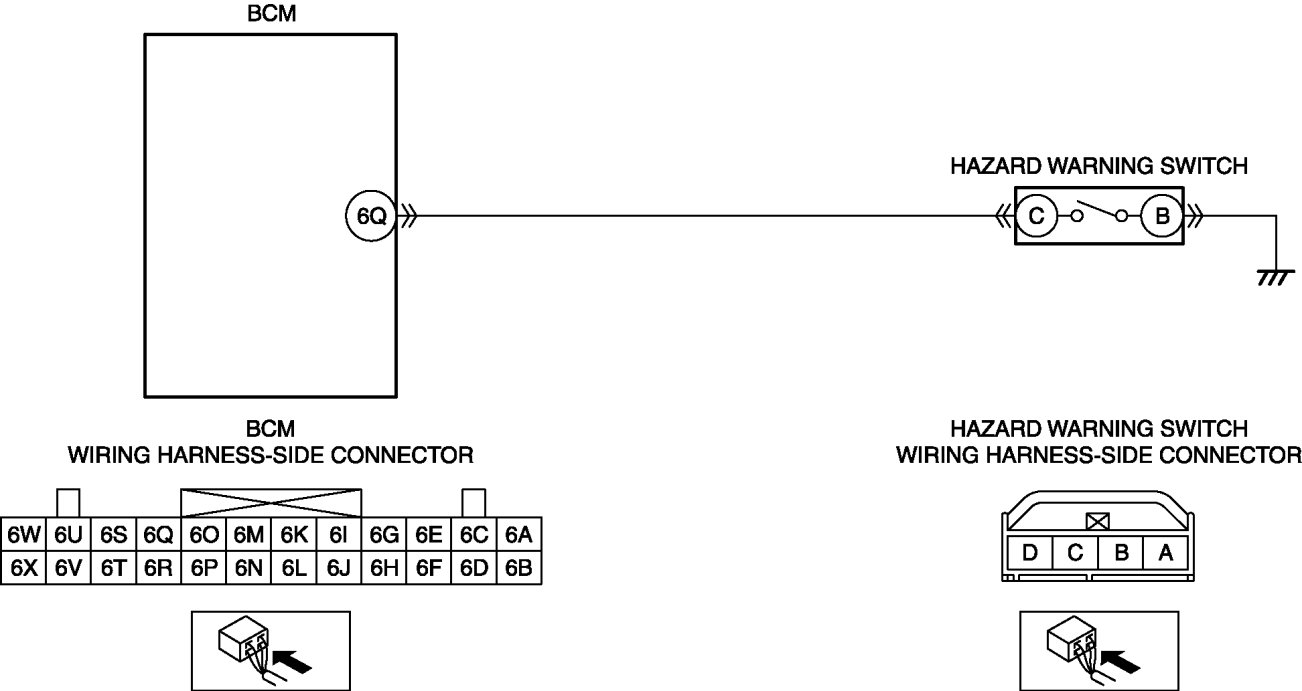

System Wiring Diagram

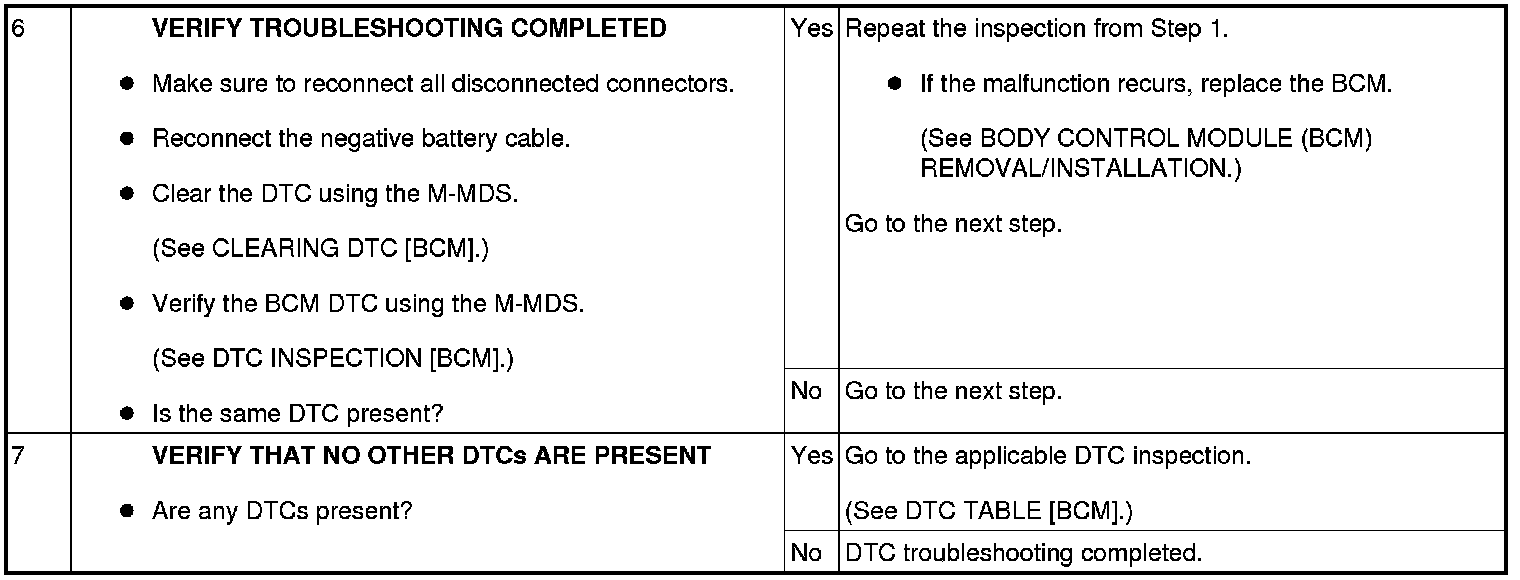

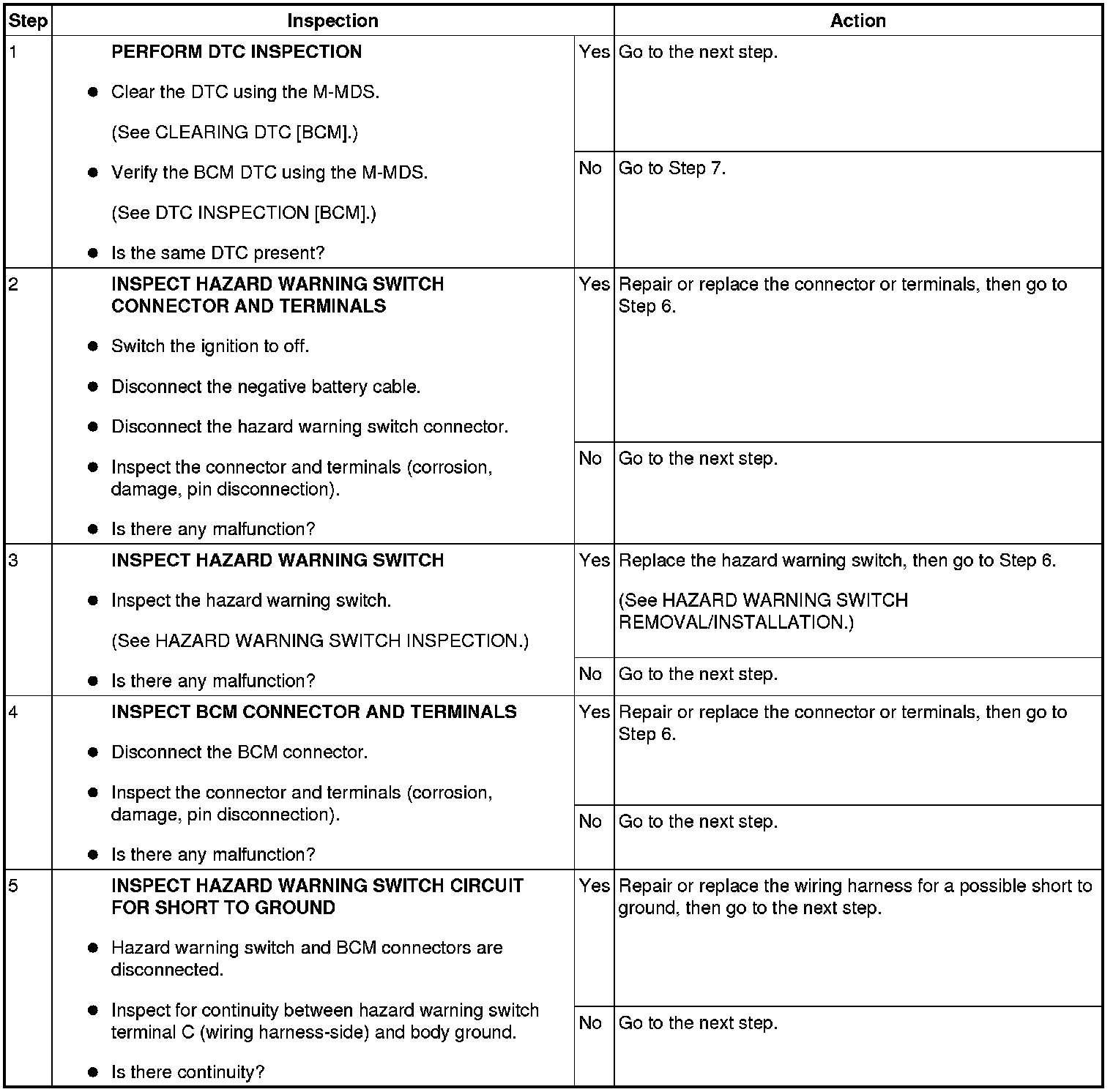

Diagnostic Procedure
