A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1D13
B1D13
DTC B1D13:12 [BCM]

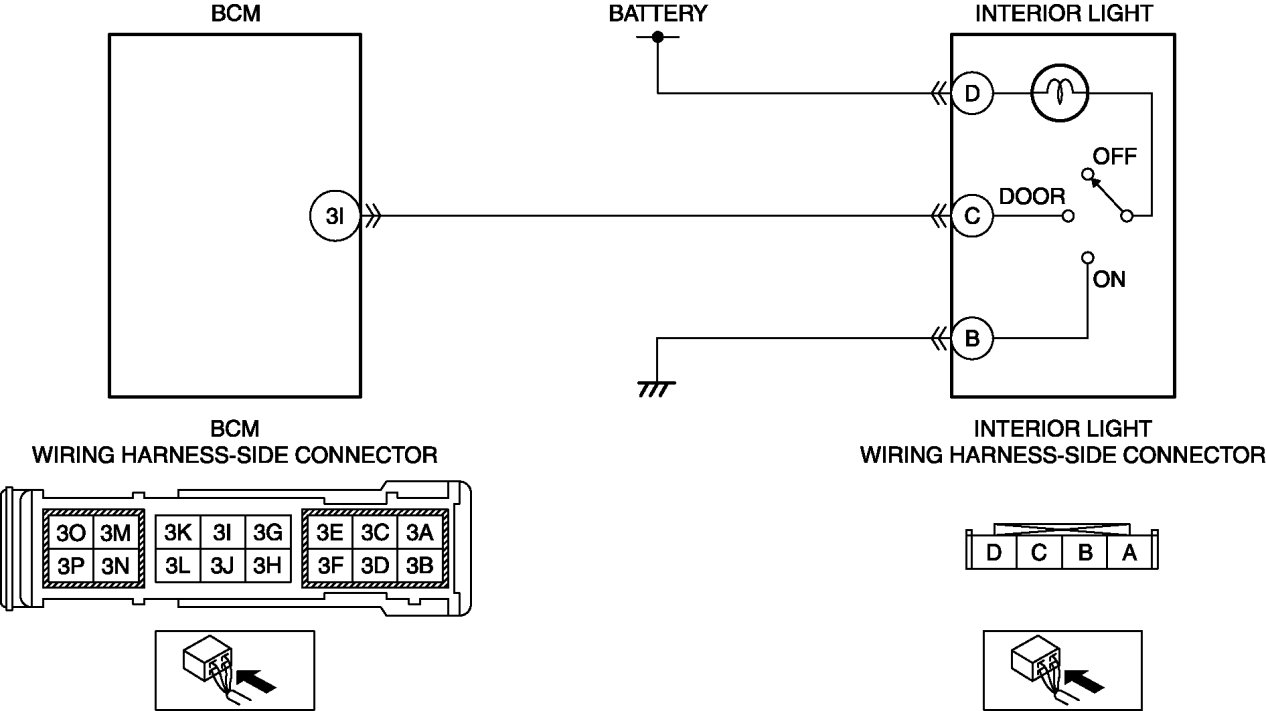

System Wiring Diagram

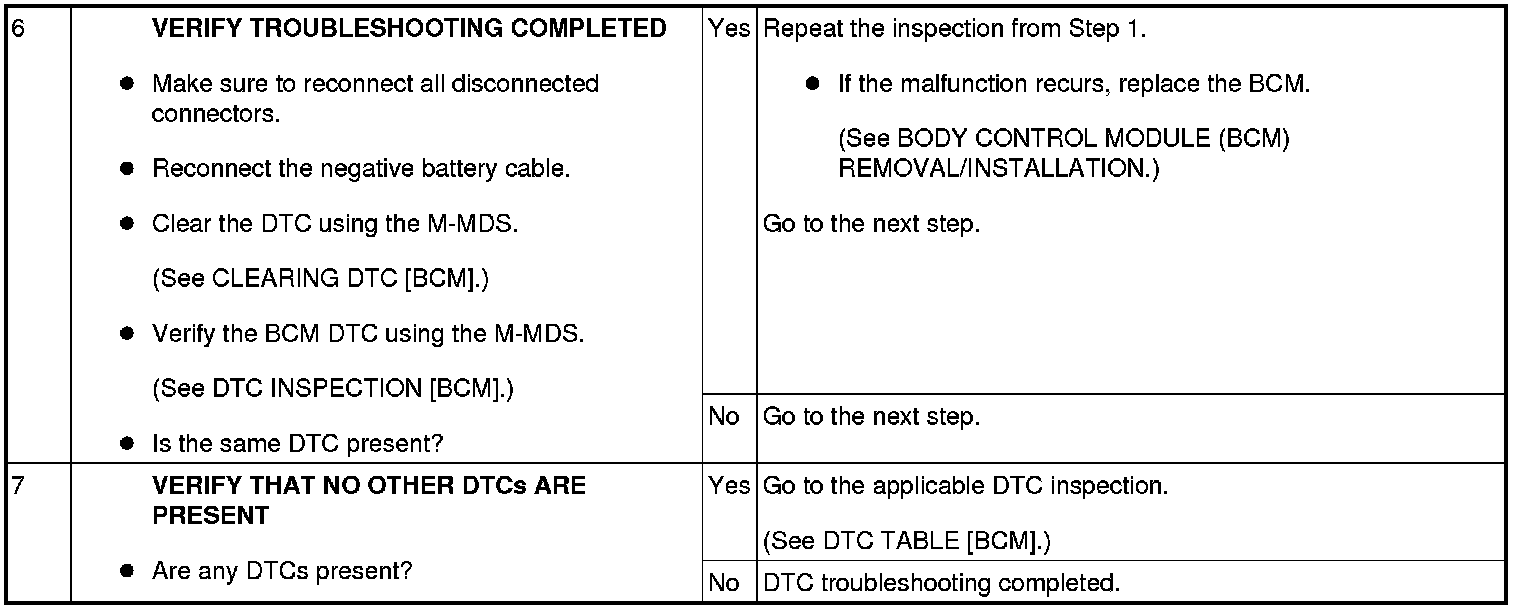

Diagnostic Procedure
