A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1172
B1172

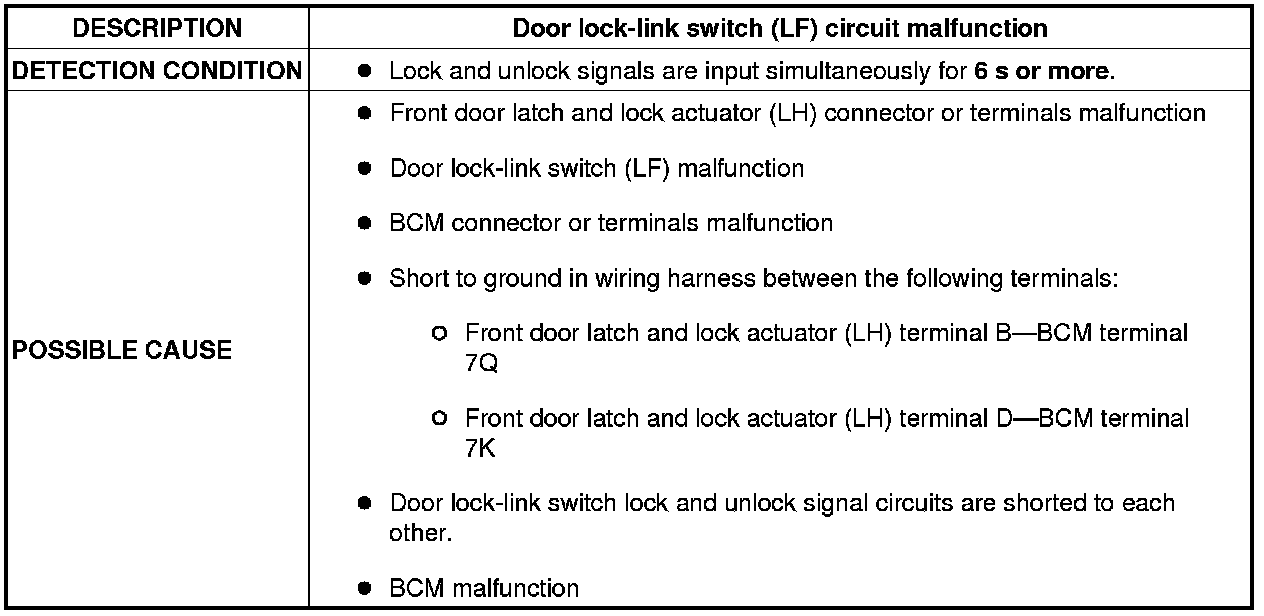

DTC B1172:92 [BCM]
System Wiring Diagram

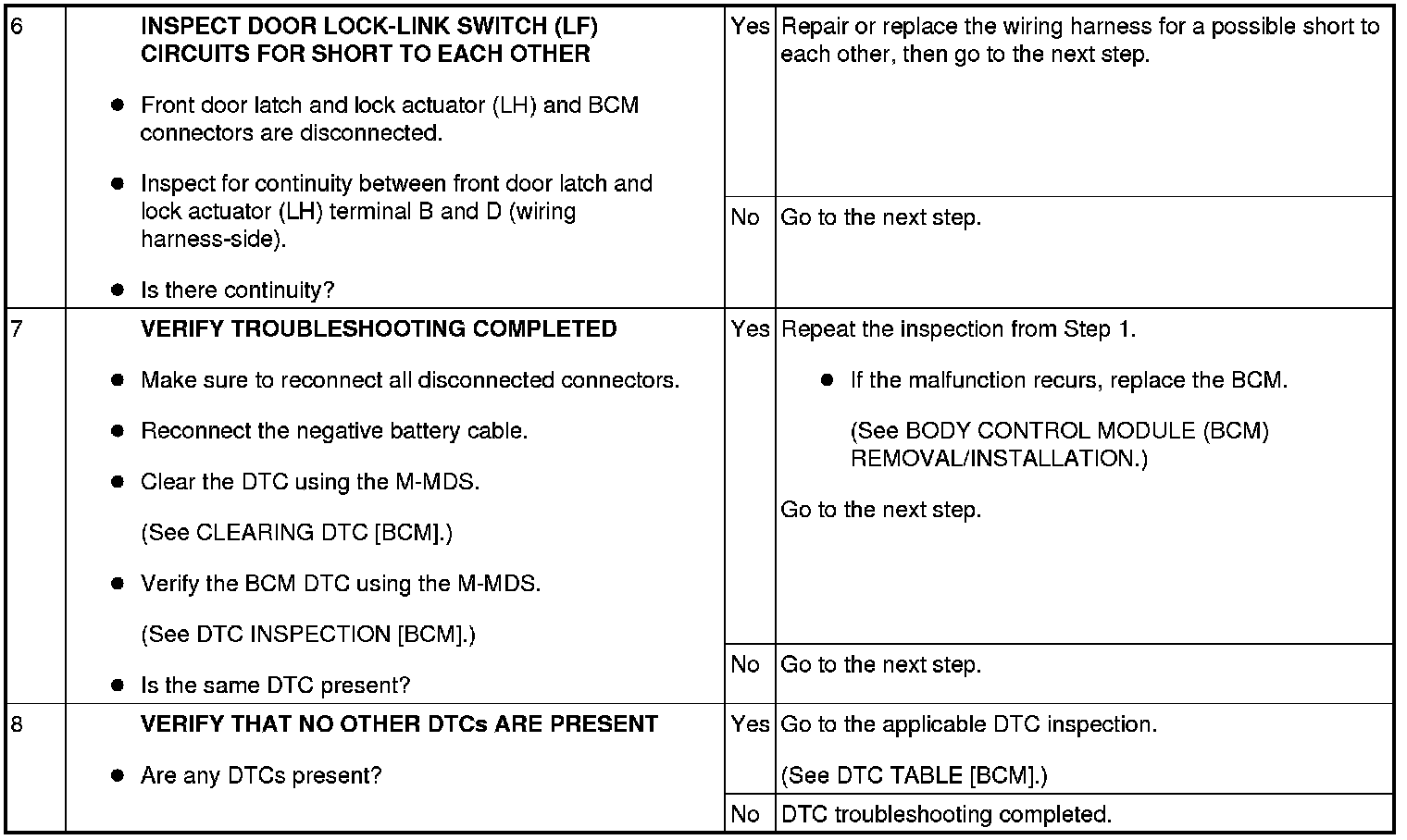

Diagnostic Procedure
