Automatic Transaxle Control System Wiring Diagram

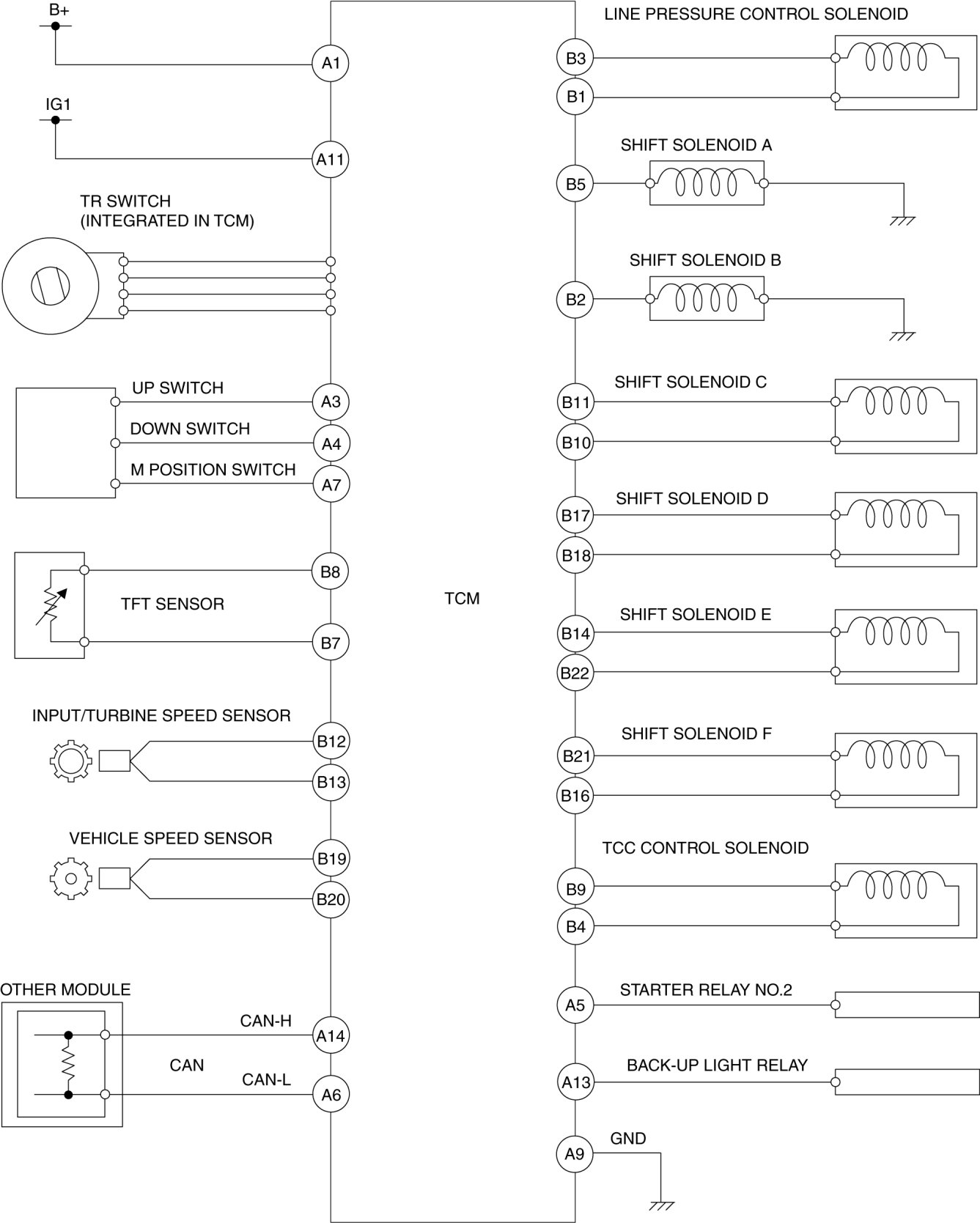

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM [AY6A-EL]
