On-Board Diagnostic System Wiring Diagram
On-Board Diagnostic System Wiring Diagram

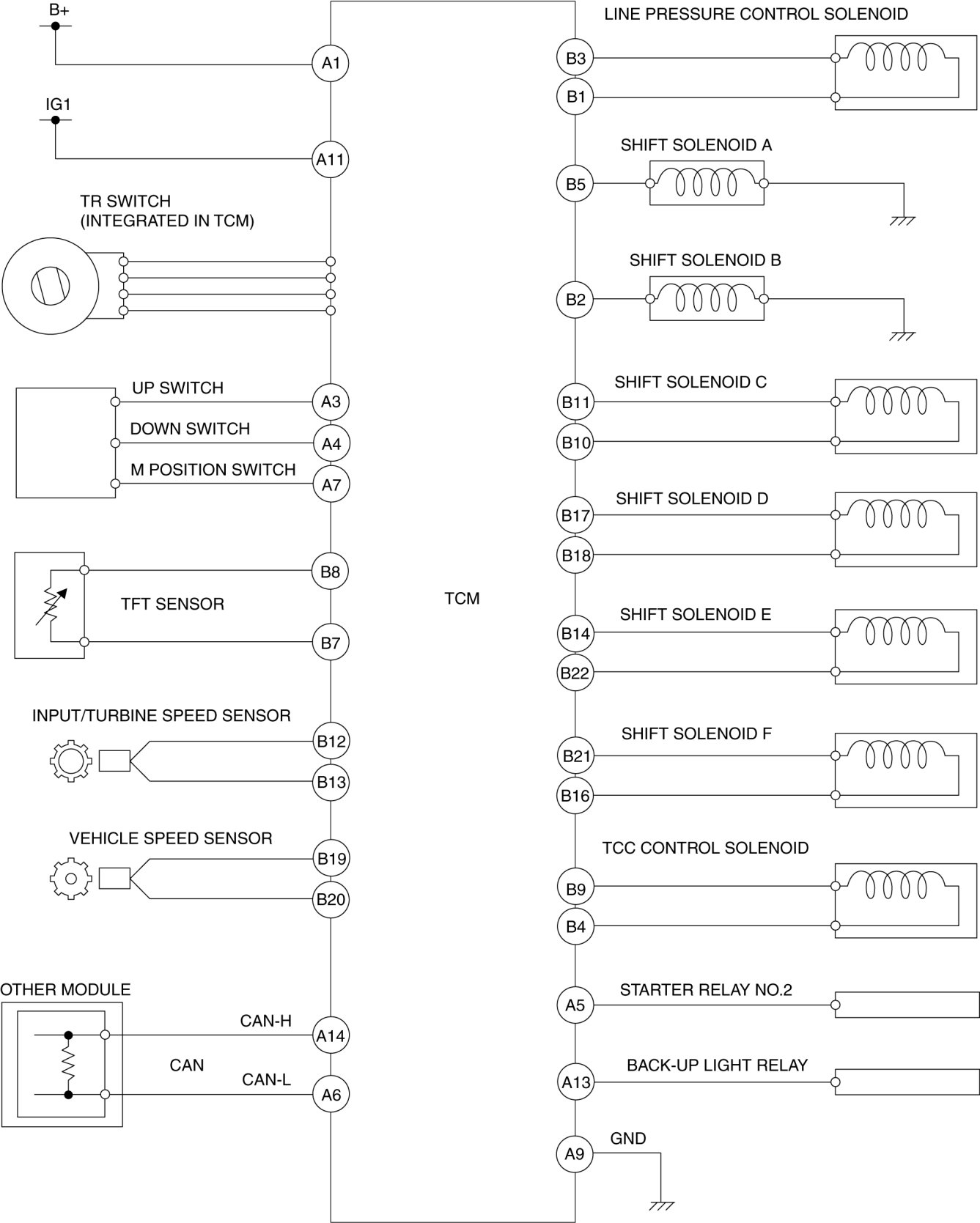

ON-BOARD DIAGNOSTIC SYSTEM WIRING DIAGRAM [AY6A-EL]
