System Wiring Diagram
System Wiring Diagram

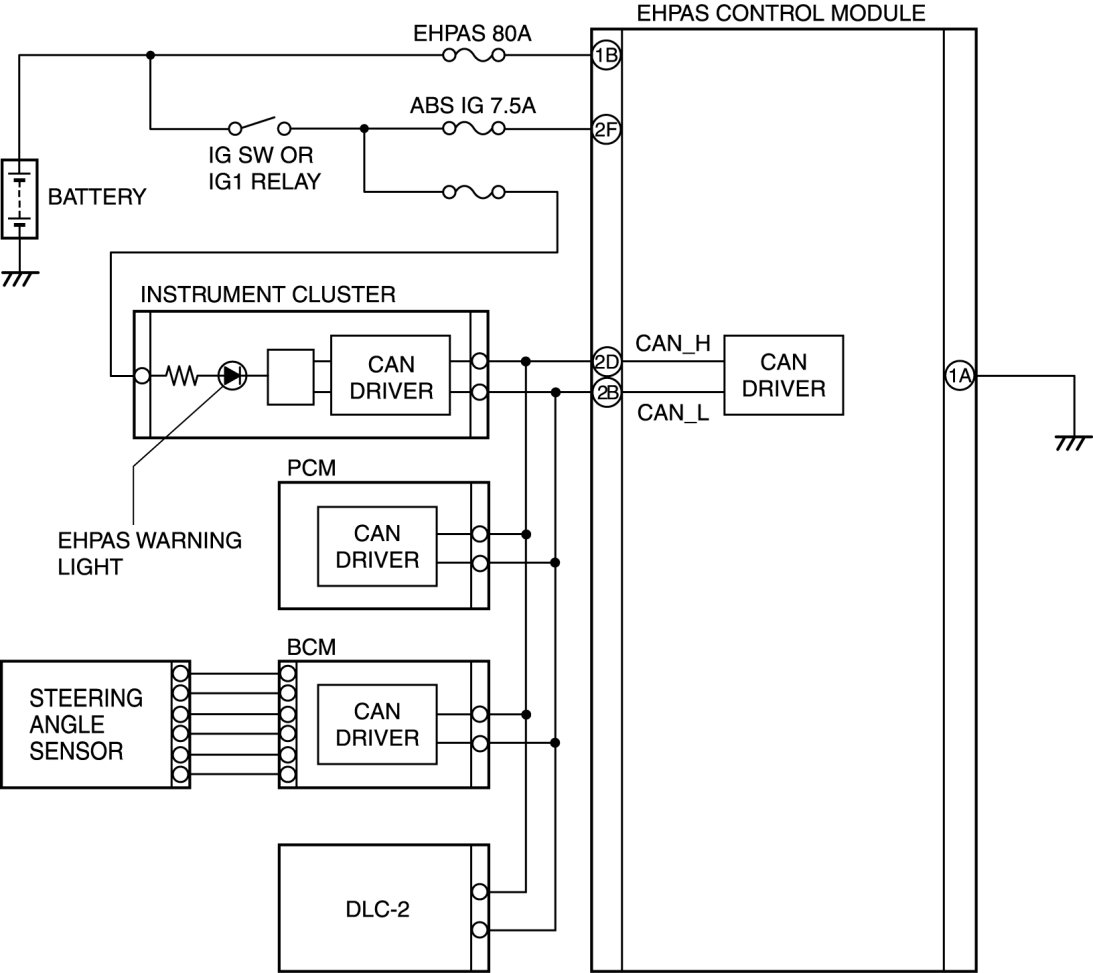

ELECTRO HYDRAULIC POWER ASSIST
STEERING
(EHPAS) SYSTEM WIRING DIAGRAM
