Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Diagrams
>>

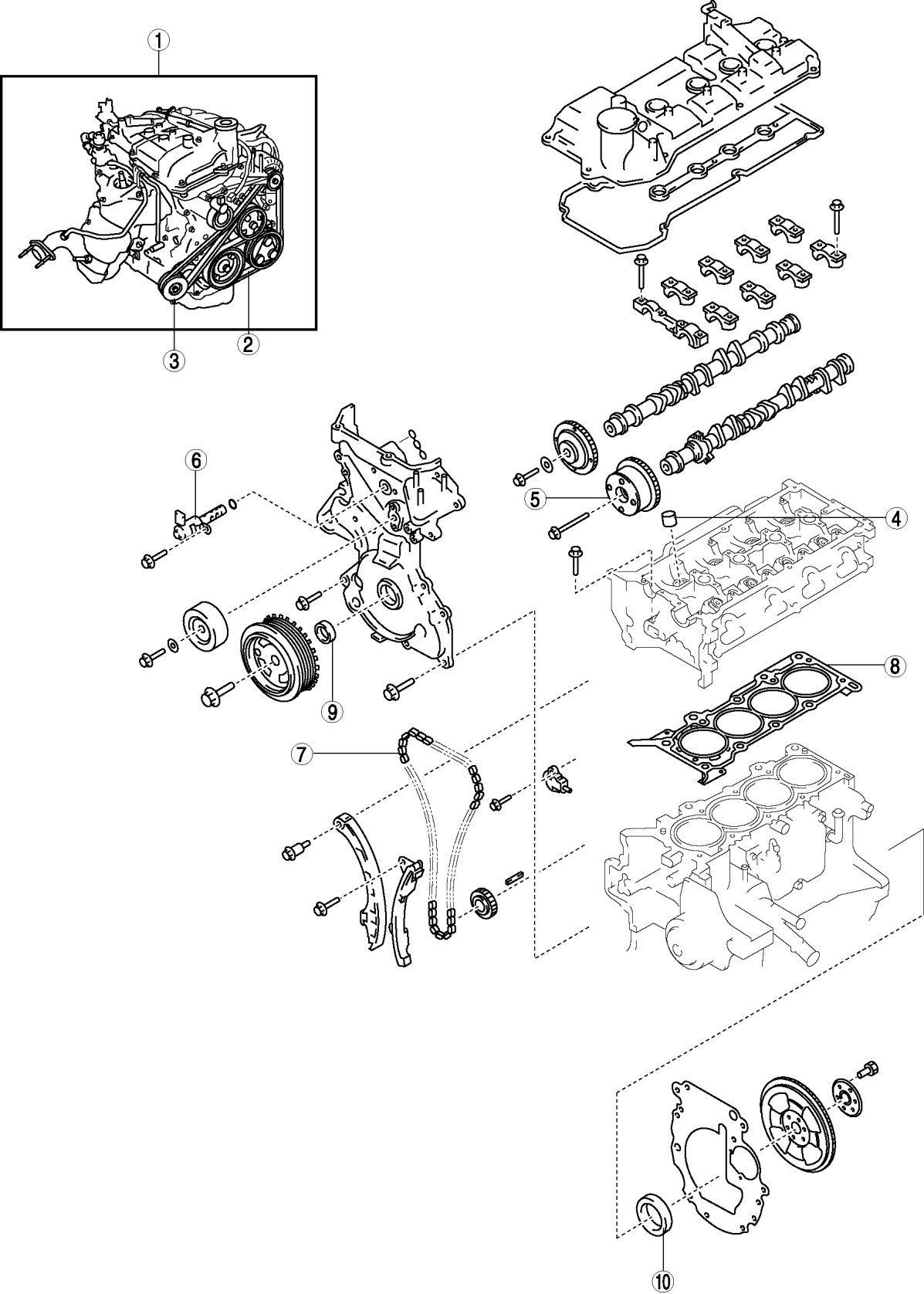

Exploded Views
Exploded Views

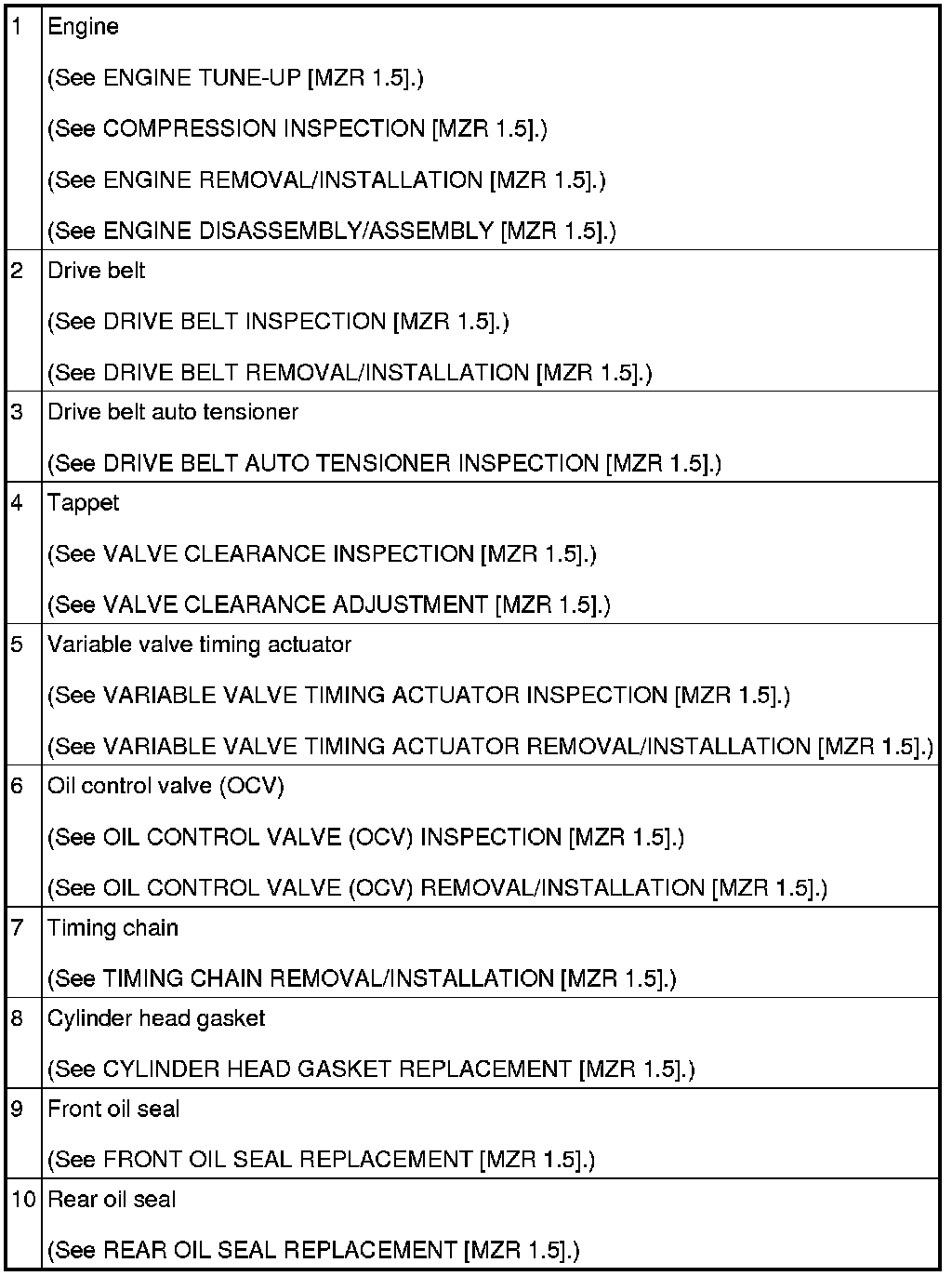

ENGINE LOCATION INDEX [MZR 1.5]
