Audio Unit/Audio Unit Illumination
Audio Unit/Audio Unit Illumination

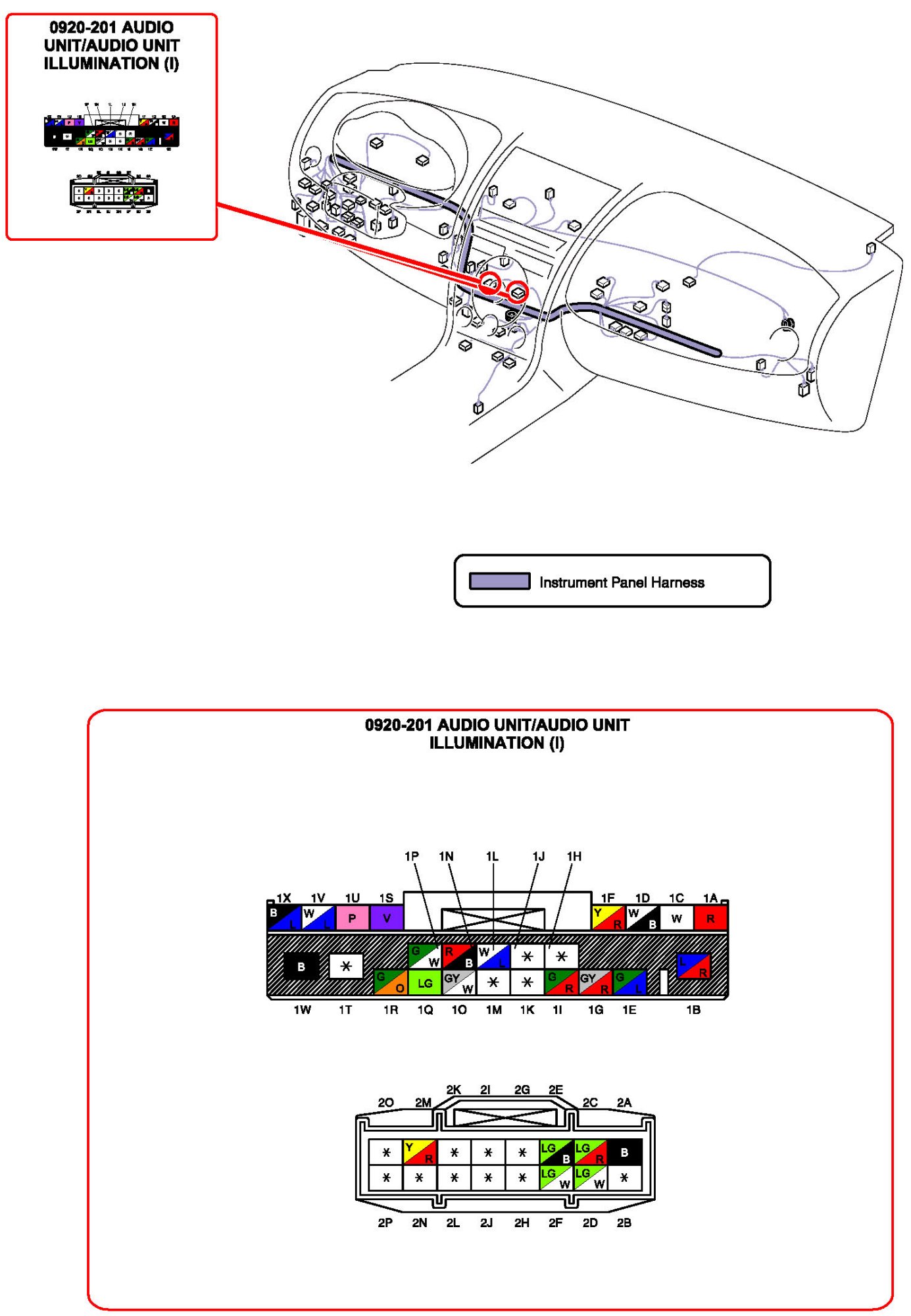

Audio Unit/Audio Unit Illumination:

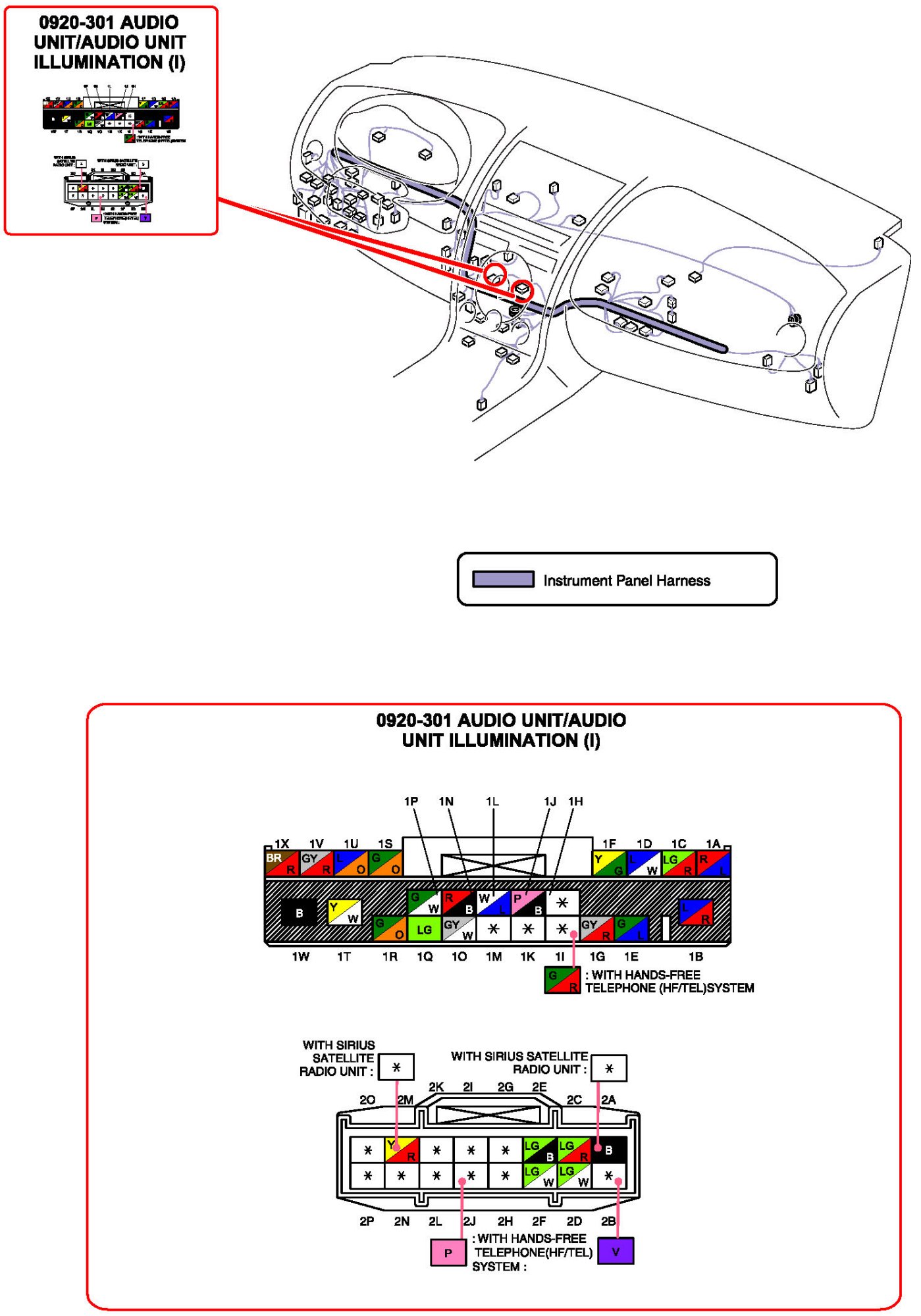

Audio Unit/Audio Unit Illumination:
