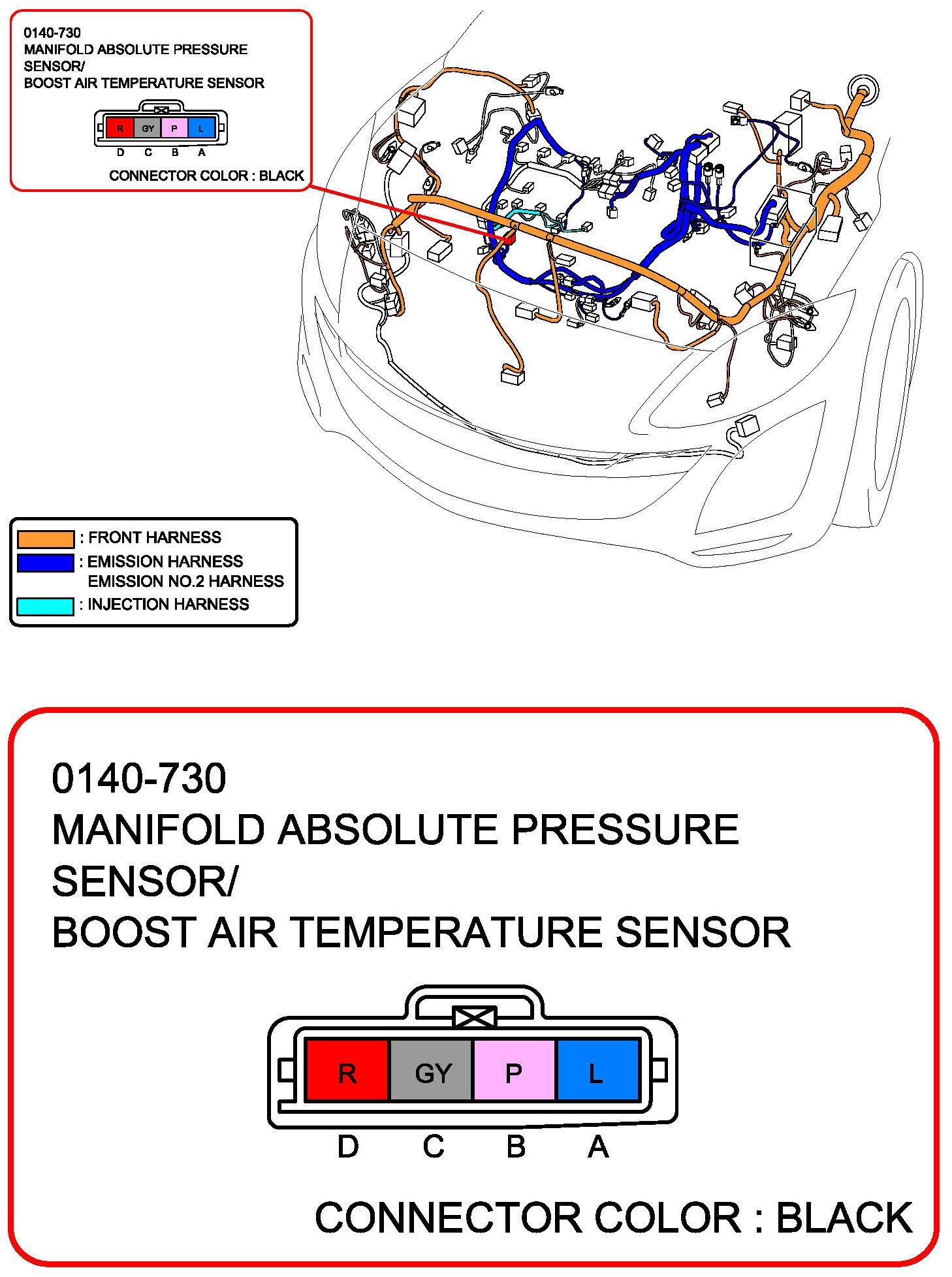

Manifold Absolute Pressure Sensor / Boost Air Temperature Sensor
Manifold Absolute Pressure Sensor / Boost Air Temperature Sensor
Manifold Absolute Pressure Sensor / Boost Air Temperature Sensor:
