Mazda
>>
2010
>>
Mazdaspeed3 L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Climate Control Unit
Climate Control Unit

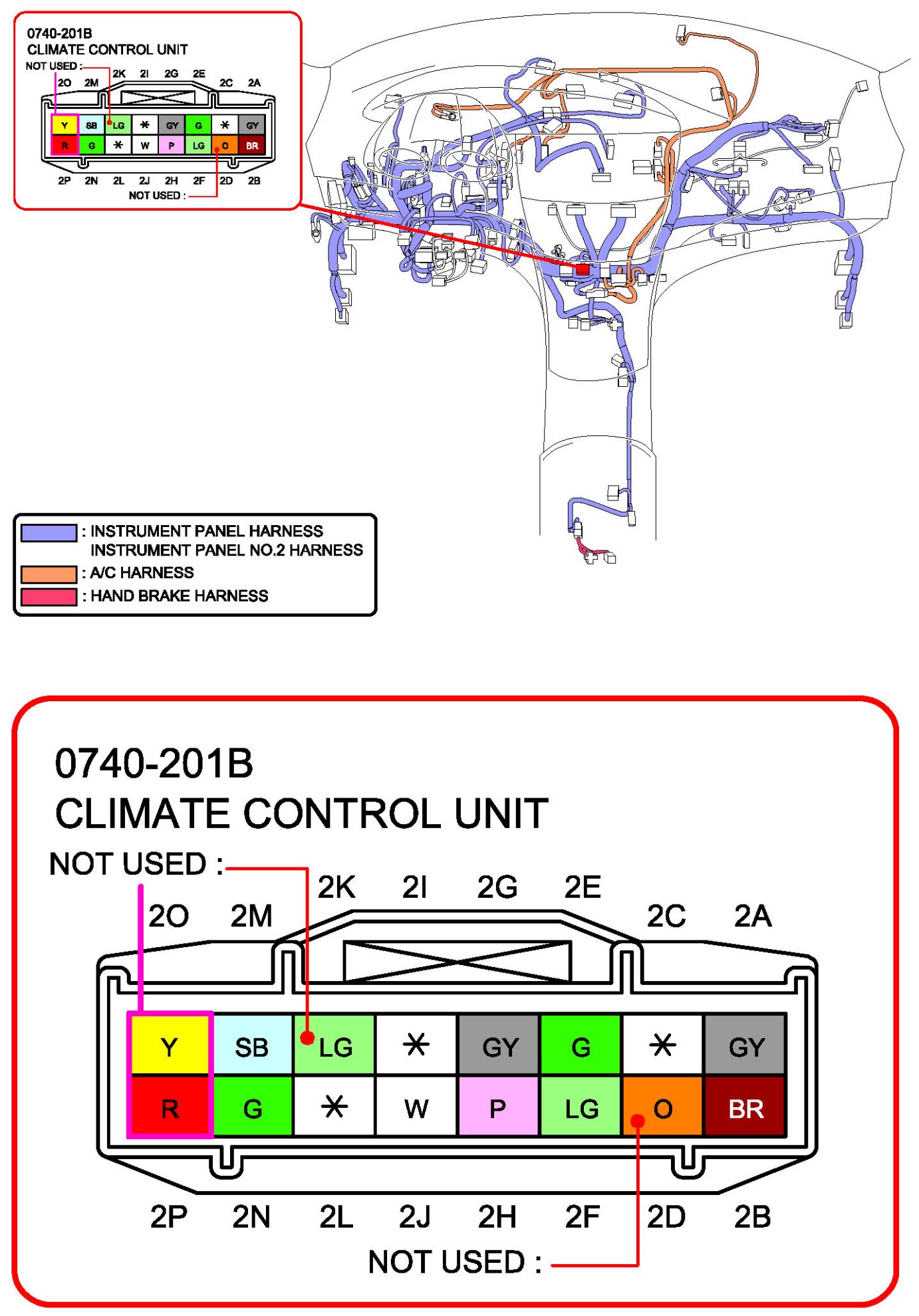

Climate Control Unit:

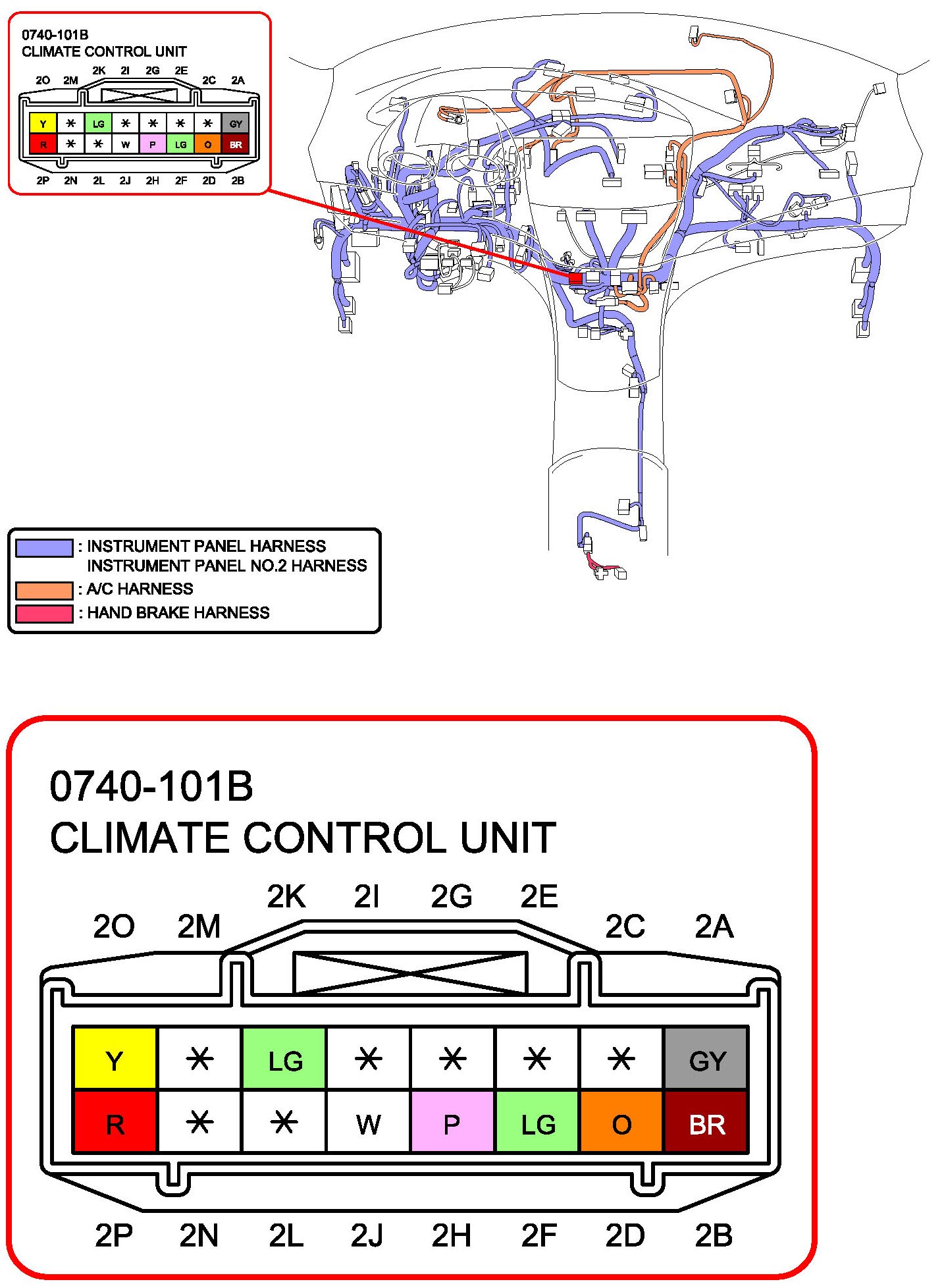

Climate Control Unit:

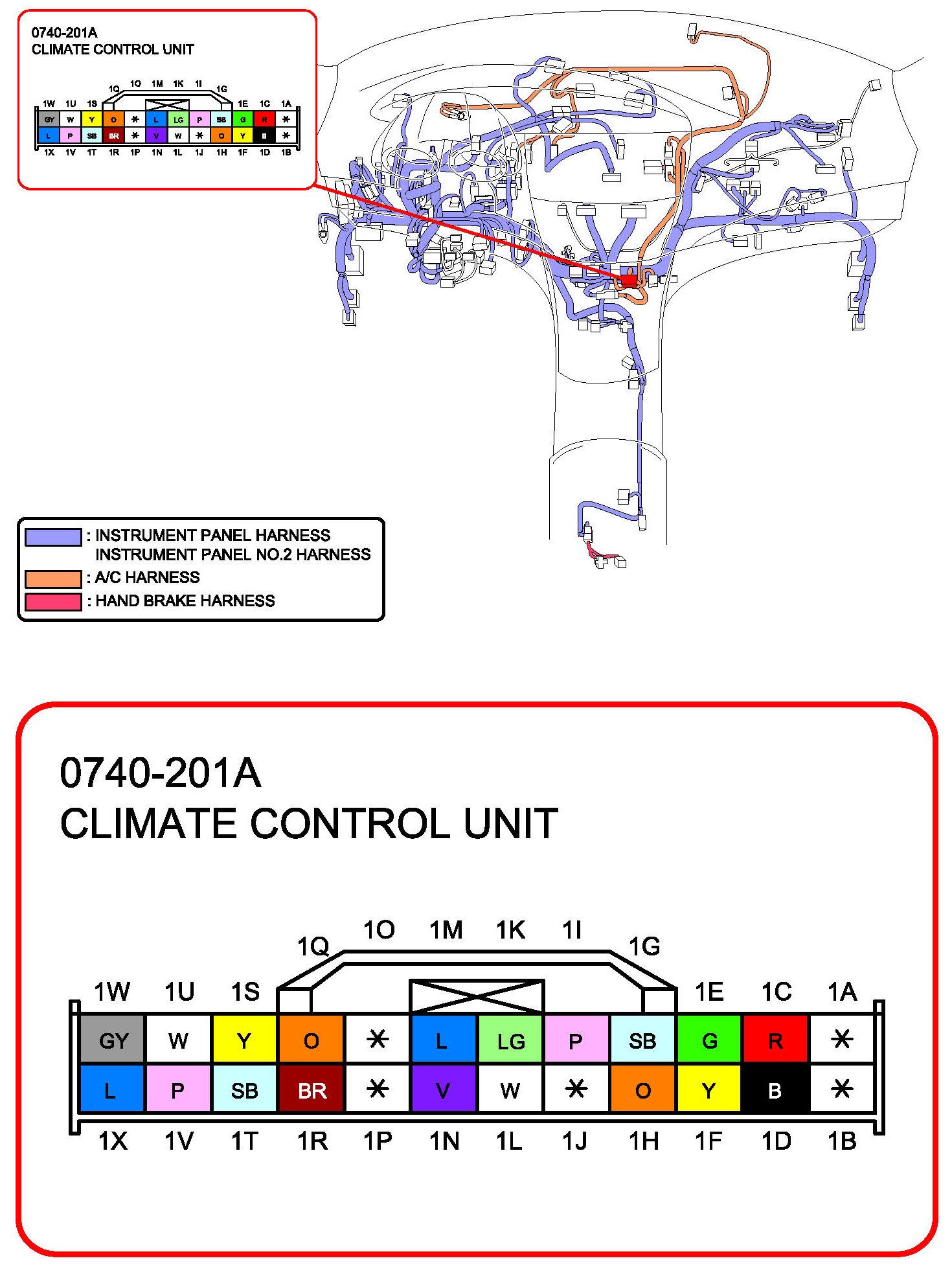

Climate Control Unit:

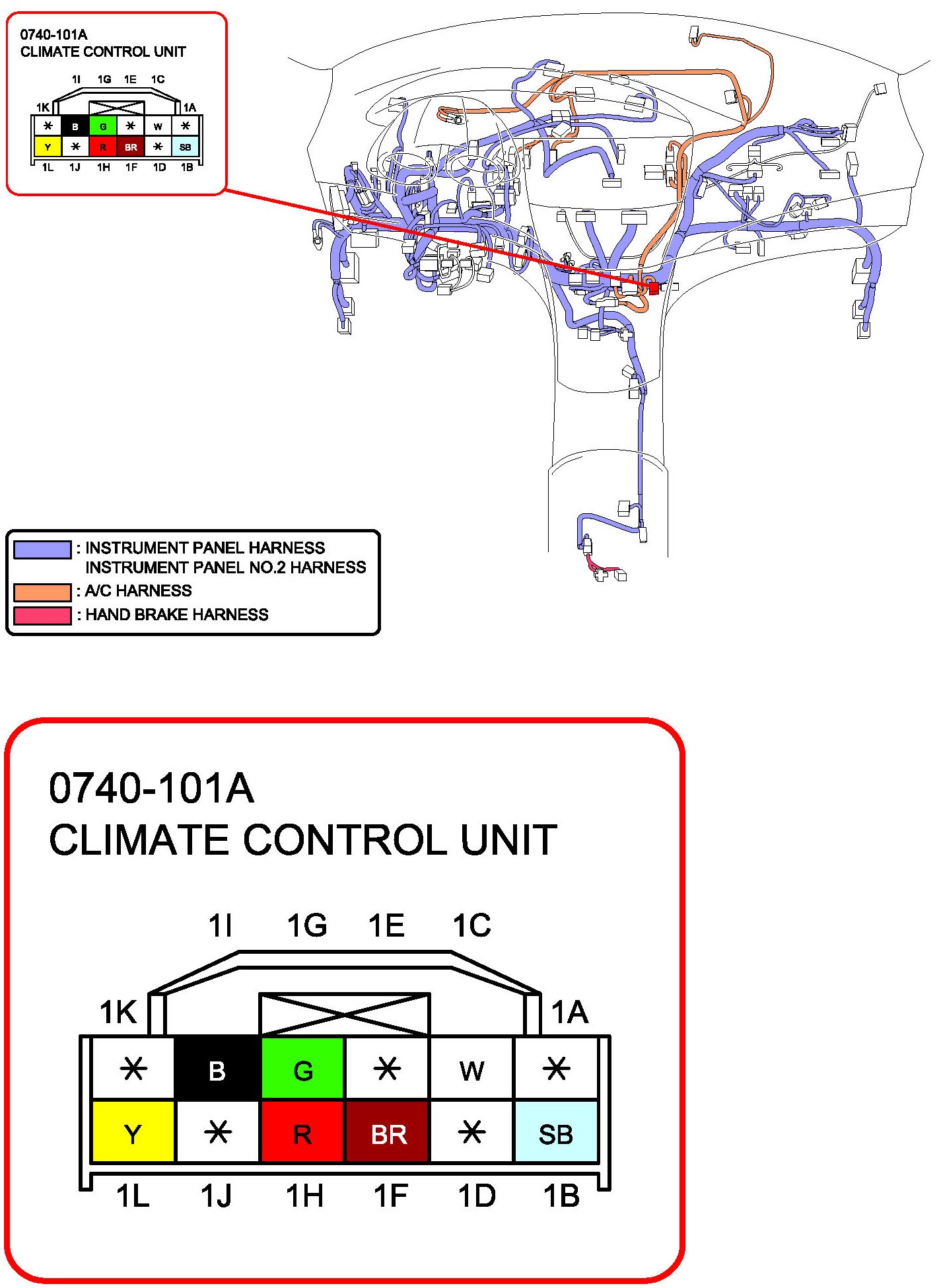

Climate Control Unit:
