Locations
>>
Connector Locations
Connector Locations
Climate Control Unit:

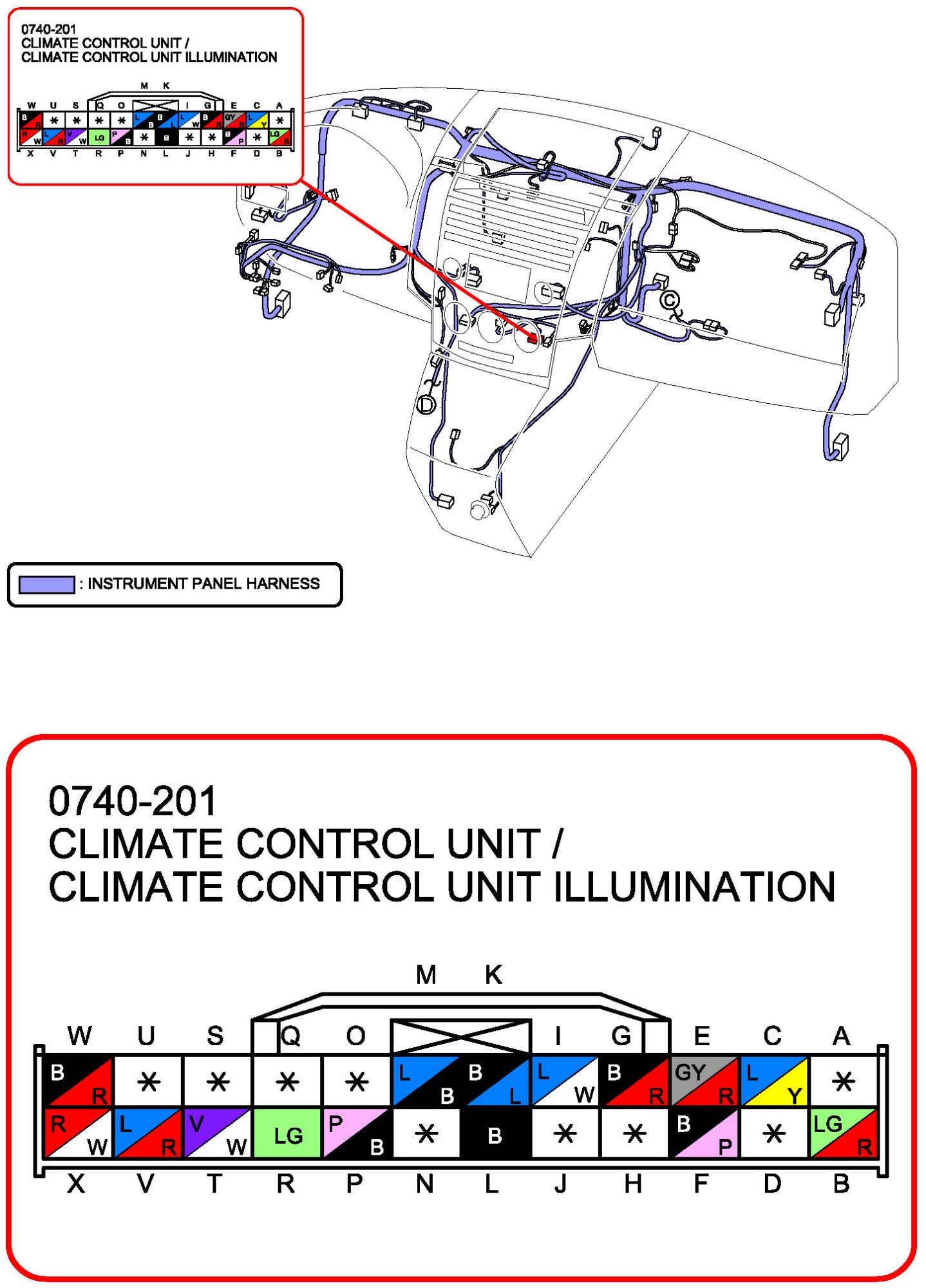

Climate Control Unit/Climate Control Unit Illumination:

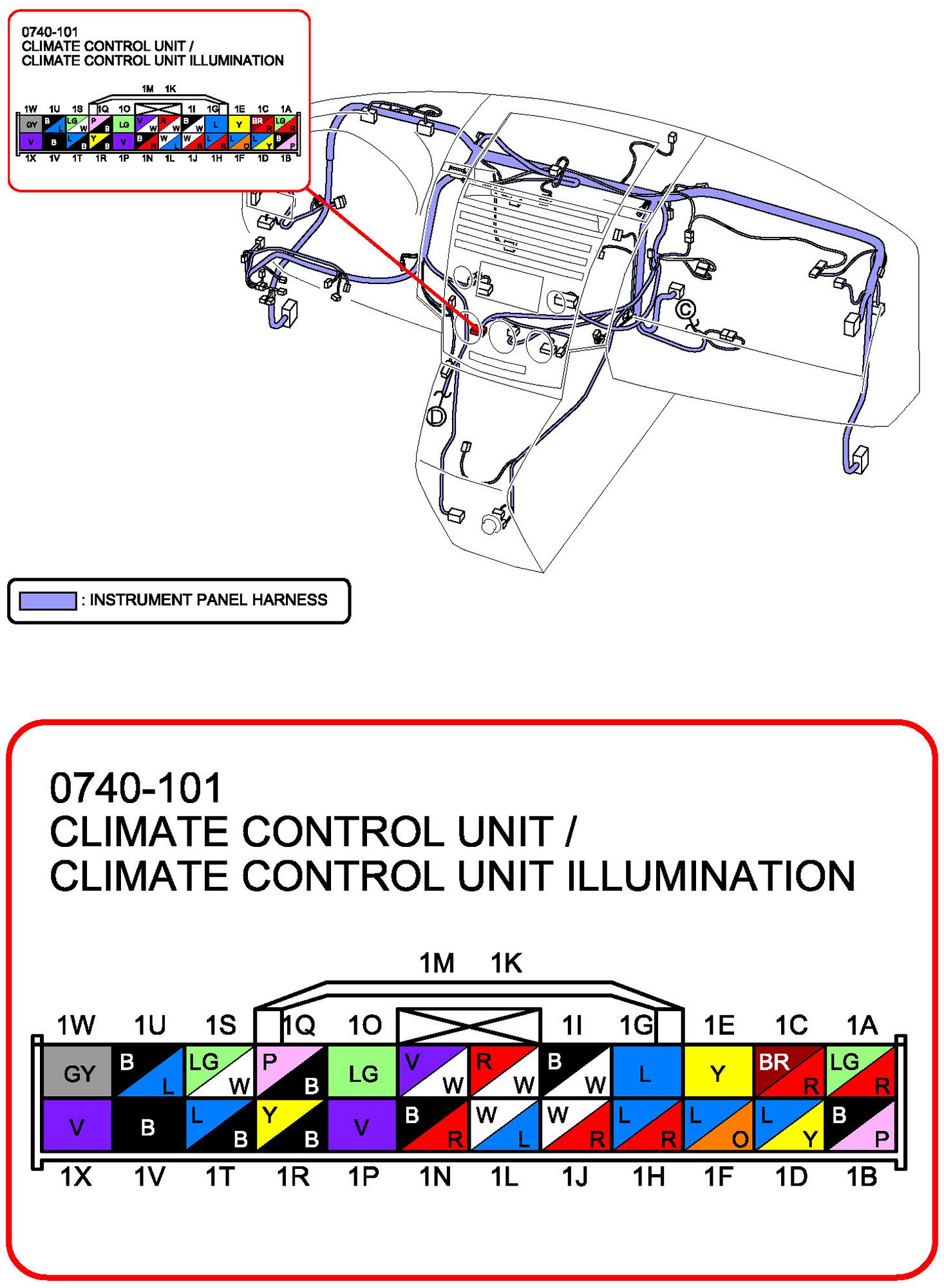

Climate Control Unit/Climate Control Unit Illumination:
