Home >> Mazda >> 2010 >> 3 L4-2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> Timing Chain Tensioner

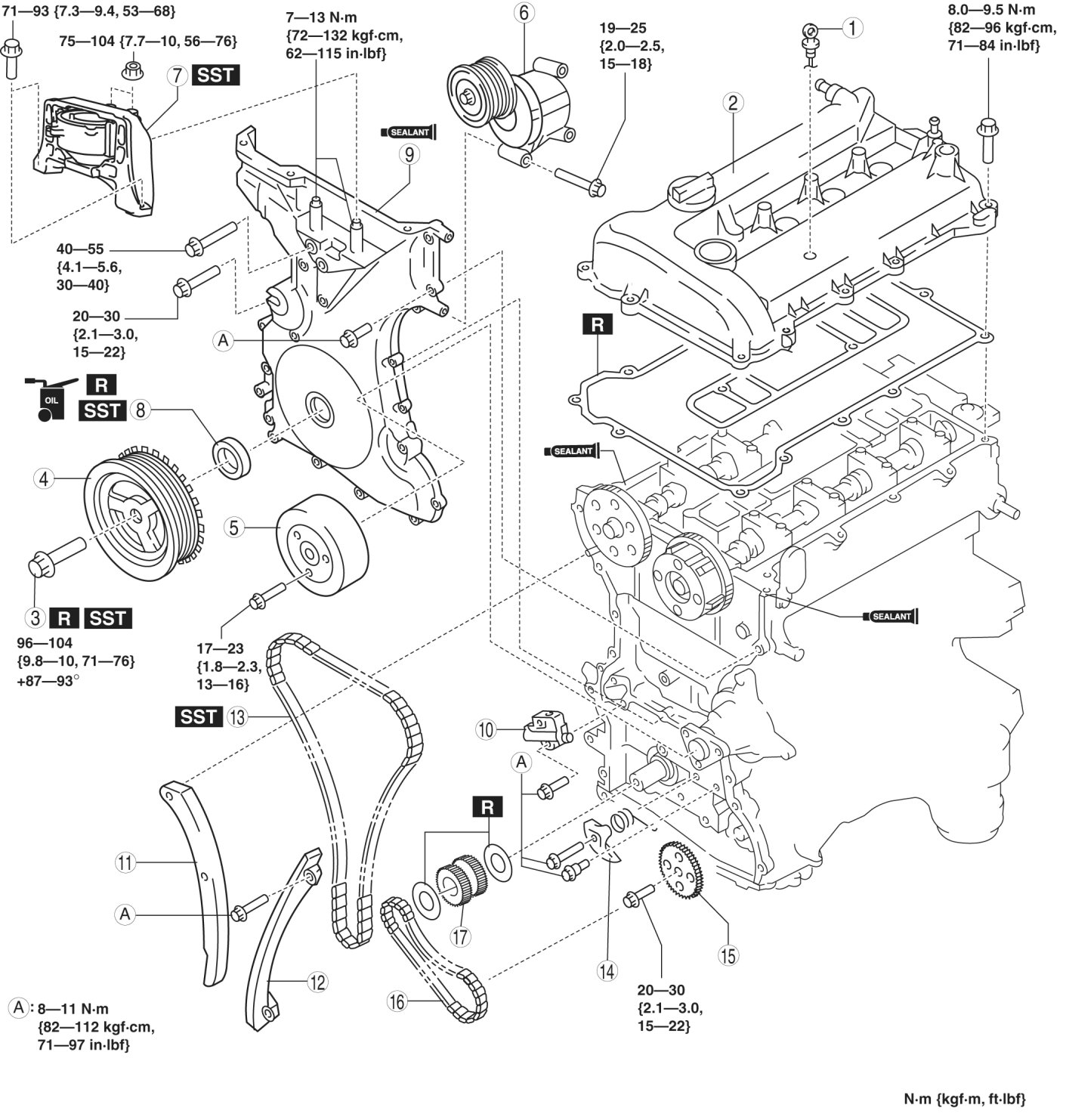

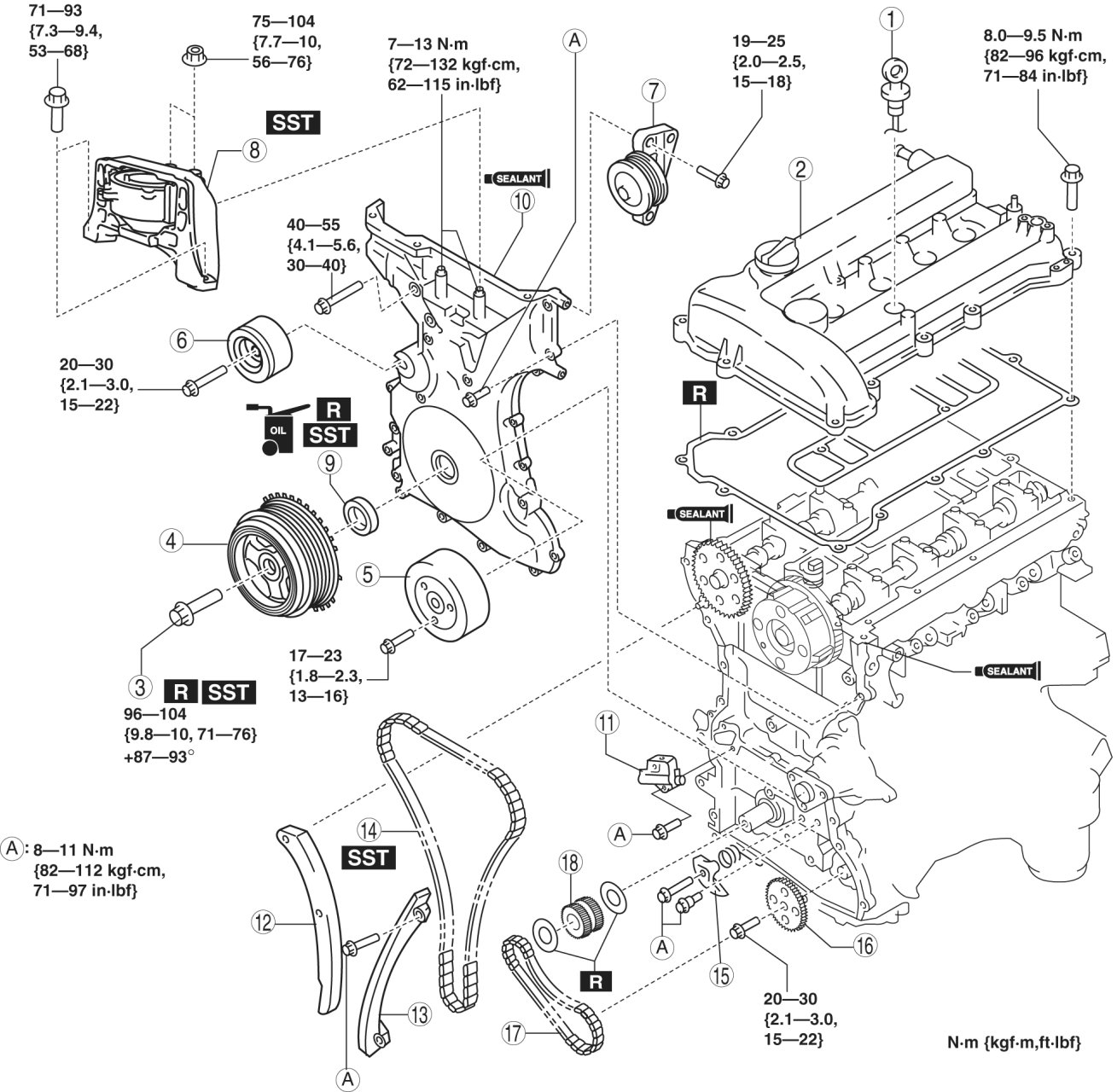

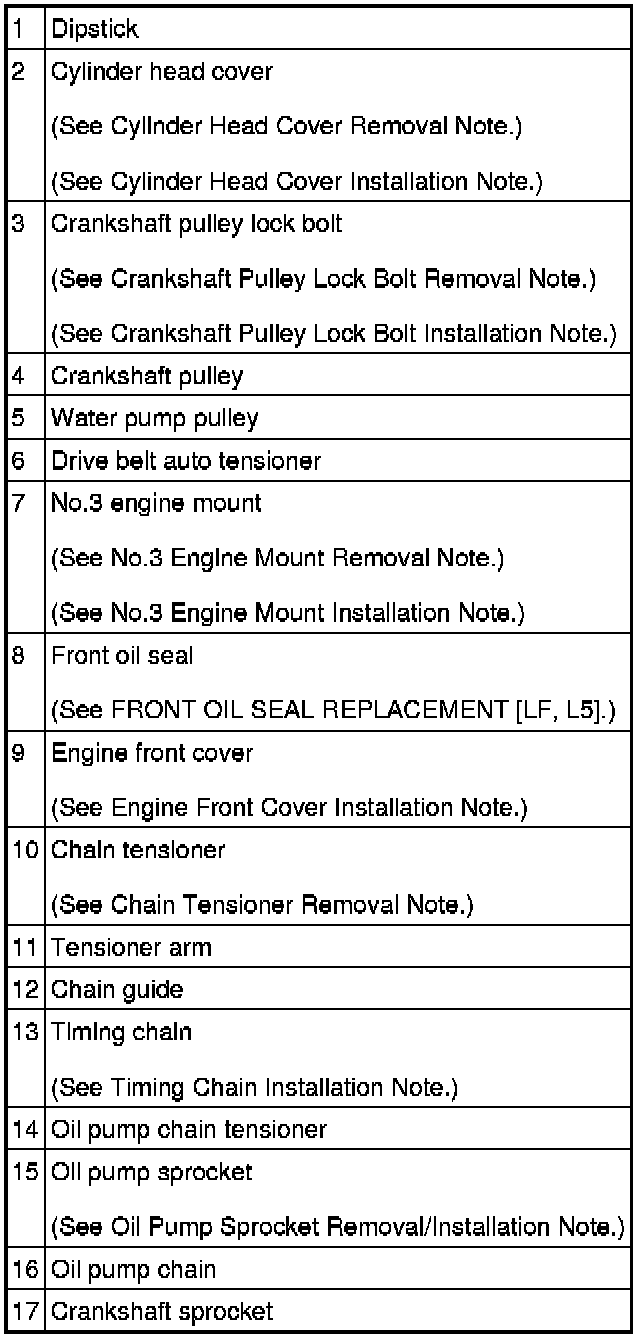

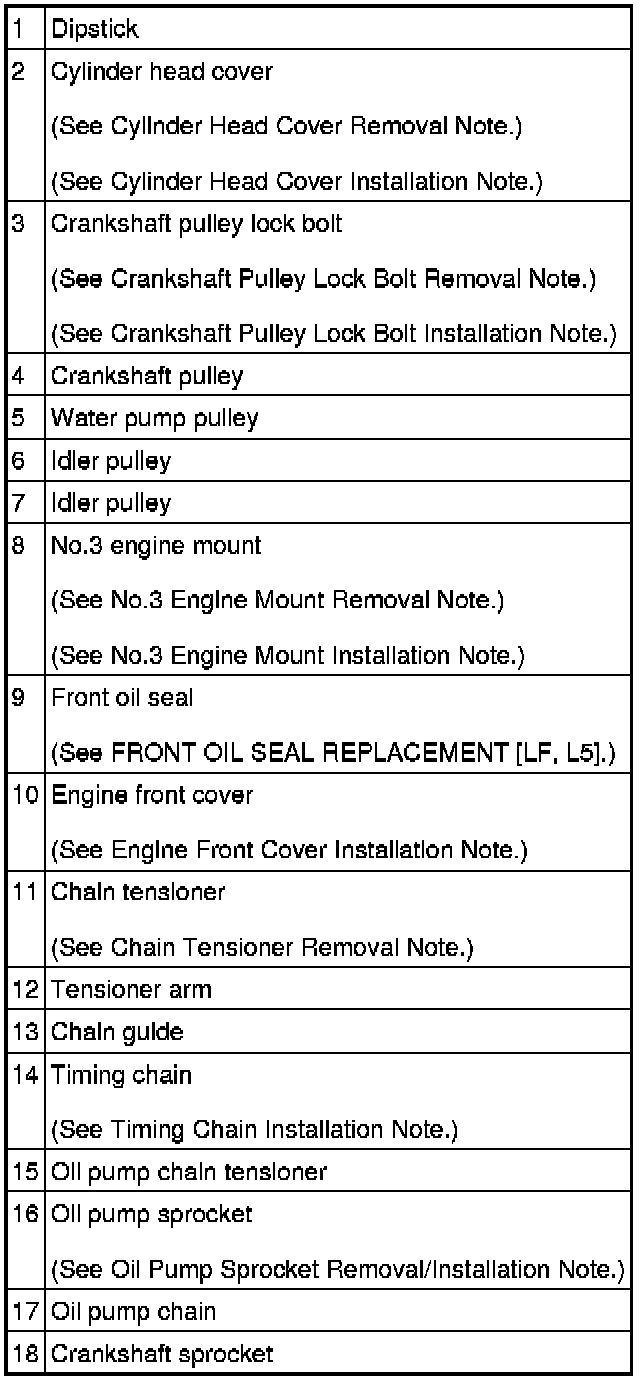

Timing Chain Tensioner

LF










L5
