Oil Seal (Oil Pump) Replacement [SJ6A-EL]

OIL SEAL (OIL PUMP) REPLACEMENT [SJ6A-EL]

1. Remove the automatic transmission. Automatic Transmission Removal/Installation [SJ6A-EL]

CAUTION:
- The oil seal is easily damaged by the sharp edges of the torque converter splines. Do not let the splines contact the oil seal.
- Do not drop the torque converter.
- Do not pinch fingers.

2. Remove the torque converter. Service and Repair

CAUTION:
- Do not to damage the bushing on the oil pump body.

3. Remove the oil seal from the oil pump body using the SST.

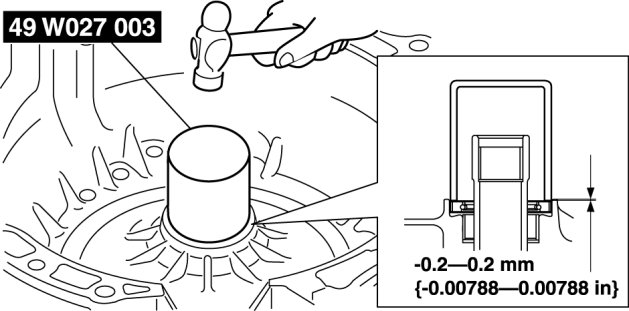

4. Using the SST and a hammer, install the new oil seal to the oil pump body.






5. Coat the lip of the oil seal with grease.

6. Install the torque converter. Service and Repair

7. Install the automatic transmission. Automatic Transmission Removal/Installation [SJ6A-EL]

8. Perform the mechanical system test. Mechanical System Test [SJ6A-EL]
