Oil Seal (Extension Housing) Replacement [SJ6A-EL]

OIL SEAL (EXTENSION HOUSING) REPLACEMENT [SJ6A-EL]

1. Remove the engine cover. Service and Repair

2. Remove the battery cover.

3. Disconnect the negative battery cable.

4. Clean the transmission exterior thoroughly using a steam cleaner or cleaning solvent.

5. Remove the following parts.
a. Front tunnel member

b. Rear tunnel member

c. Catalytic converter Service and Repair

d. Power plant frame

e. Propeller shaft Service and Repair

CAUTION:
- Do not to damage the extension dust deflector.
- Do not to damage the extension housing.

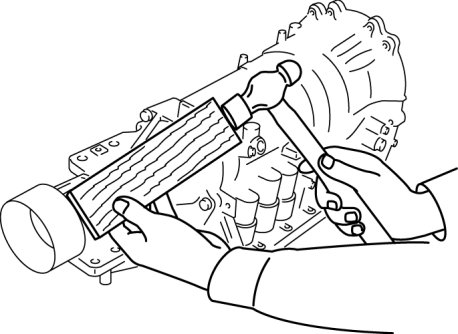

6. Using a plastic hammer and slab of wood, tap the extension dust deflector to remove it.

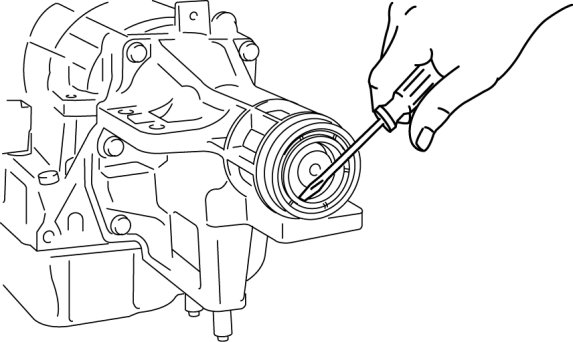

7. Using a tape-wrapped flathead screwdriver, remove the extension housing shroud.

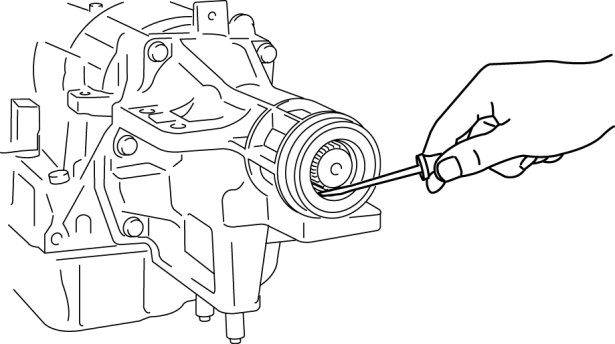

8. Using a tape-wrapped flathead screwdriver, remove the oil seal.

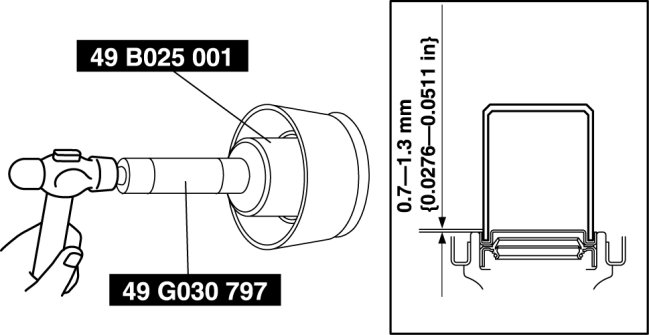

9. Using the SST and a hammer, install the new oil seal to the extension housing.






10. Coat the oil seal lip with grease.

11. Using the SST and a hammer, install the new extension housing shroud to the extension housing.

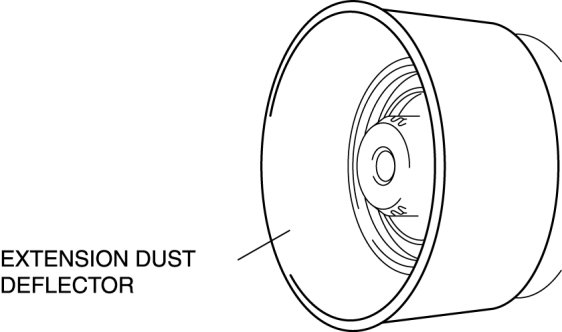

12. Using a hammer and slab of wood, install the extension dust deflector to the extension housing.






13. Install the following parts.
a. Propeller shaft Service and Repair

b. Power plant frame

c. Catalytic converter Service and Repair

d. Rear tunnel member

e. Front tunnel member

14. Inspect the ATF level. Component Tests and General Diagnostics

15. Connect the negative battery cable.

16. Install the battery cover.

17. Install the engine cover. Service and Repair
