Rear Knuckle: Testing and Inspection

WHEEL HUB, REAR KNUCKLE INSPECTION

Wheel Bearing Looseness Inspection

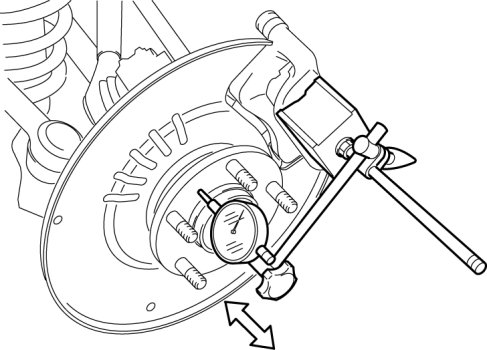

1. Install the magnetic vase and dial gauge as shown in the figure, and inspect the wheel bearing for axial looseness.






- If it exceeds the maximum specification, replace the wheel hub component.

Maximum rear wheel bearing play
- 0.05 mm {0.002 in}
