Rear Seat Belt Removal/Installation

REAR SEAT BELT REMOVAL/INSTALLATION

CAUTION:
- The ELR (emergency locking retractor) has a spring that will unwind if the retractor cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

1. Remove the rear seat. Rear Seat Removal/Installation

2. Remove the front console. Removal and Replacement

3. Remove the rear console. Removal and Replacement

4. Remove the rear package trim. Service and Repair

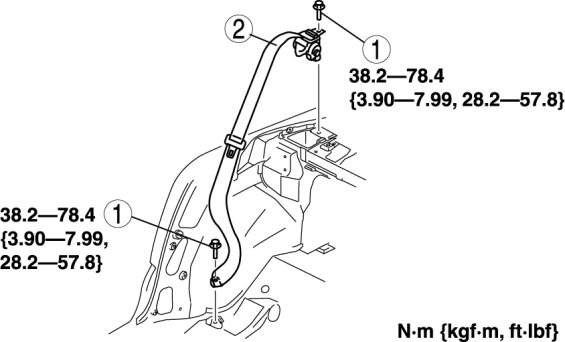

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
