Evaporative Emissions Air Separator: Testing and Inspection

EVAPORATIVE CHAMBER INSPECTION [13B-MSP]

1. Remove the rear differential. Rear Differential Removal/Installation

2. Remove the evaporative chamber installed on outside air side of the charcoal canister hose.

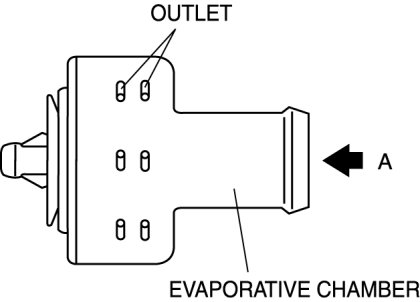

3. Blow air from port A and verify that there is air flow.

- If there is no air flow, replace the evaporative chamber.






4. Verify that there is no deformation or cracking of the evaporative chamber.

- If the exterior is not normal, replace the evaporative chamber.
