Component Tests and General Diagnostics
FLASHER CONTROL MODULE INSPECTION
1. Remove the flasher control module with the connector still connected.
2. Measure the voltage at each terminal.
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)".

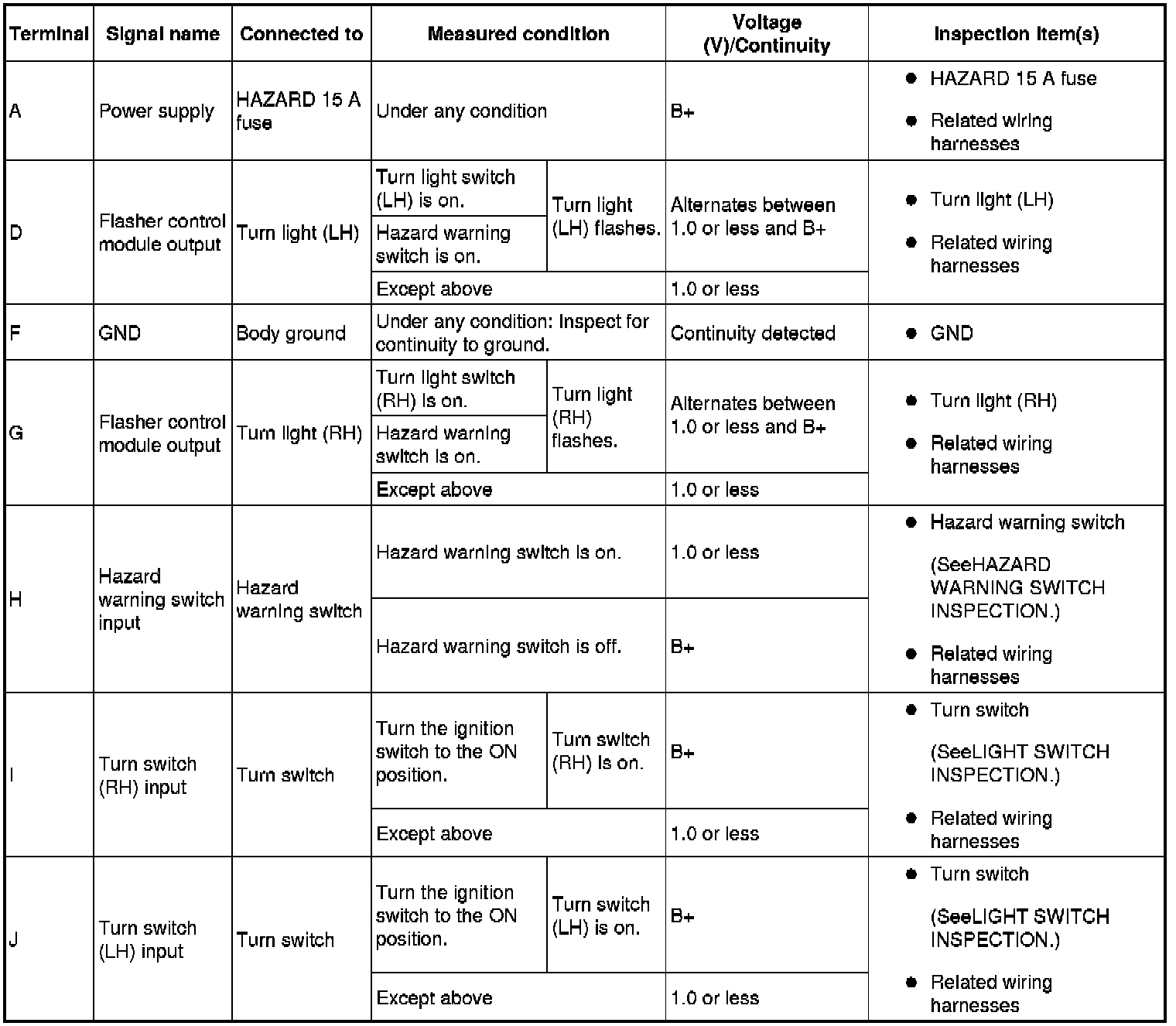

Terminal Voltage Table (Reference)
