Blower Motor Inspection [Full-Auto Air Conditioner]

BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER]

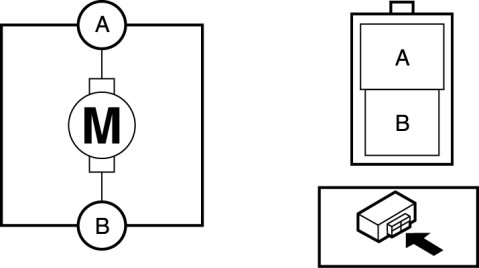

1. Connect battery positive voltage to blower motor terminal A, ground to terminal B, and then verify that the blower motor operates smoothly.

- If the operation condition is not normal, replace the blower motor.
