Flywheel (MT), Counterweight (at) Disassembly Note

Flywheel (MT), Counterweight (AT) Disassembly Note

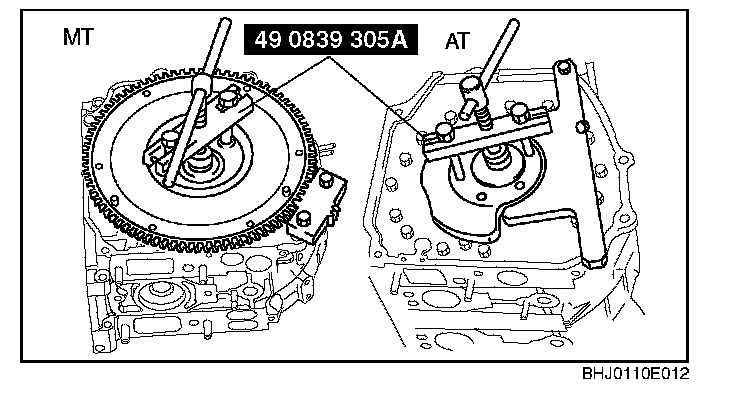

1. Lock the flywheel (MT) or counterweight (AT) against rotation using the SST.

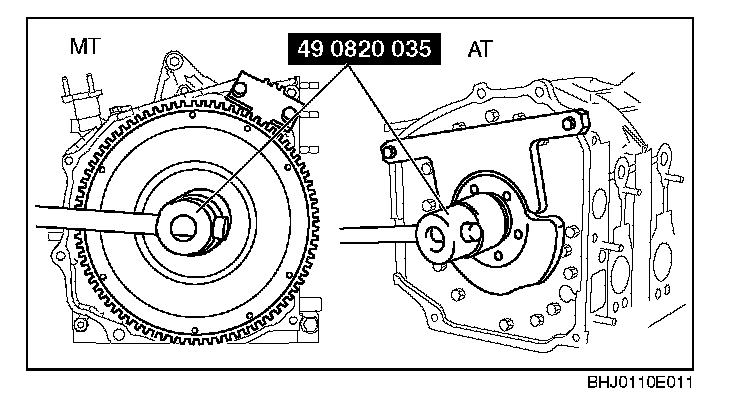

2. Remove the locknut using the SST.





3. Remove the flywheel (MT) or counterweight (AT), using the SST.
