Housing Disassembly II

HOUSING DISASSEMBLY II
1. Disassemble in the order indicated in the table.

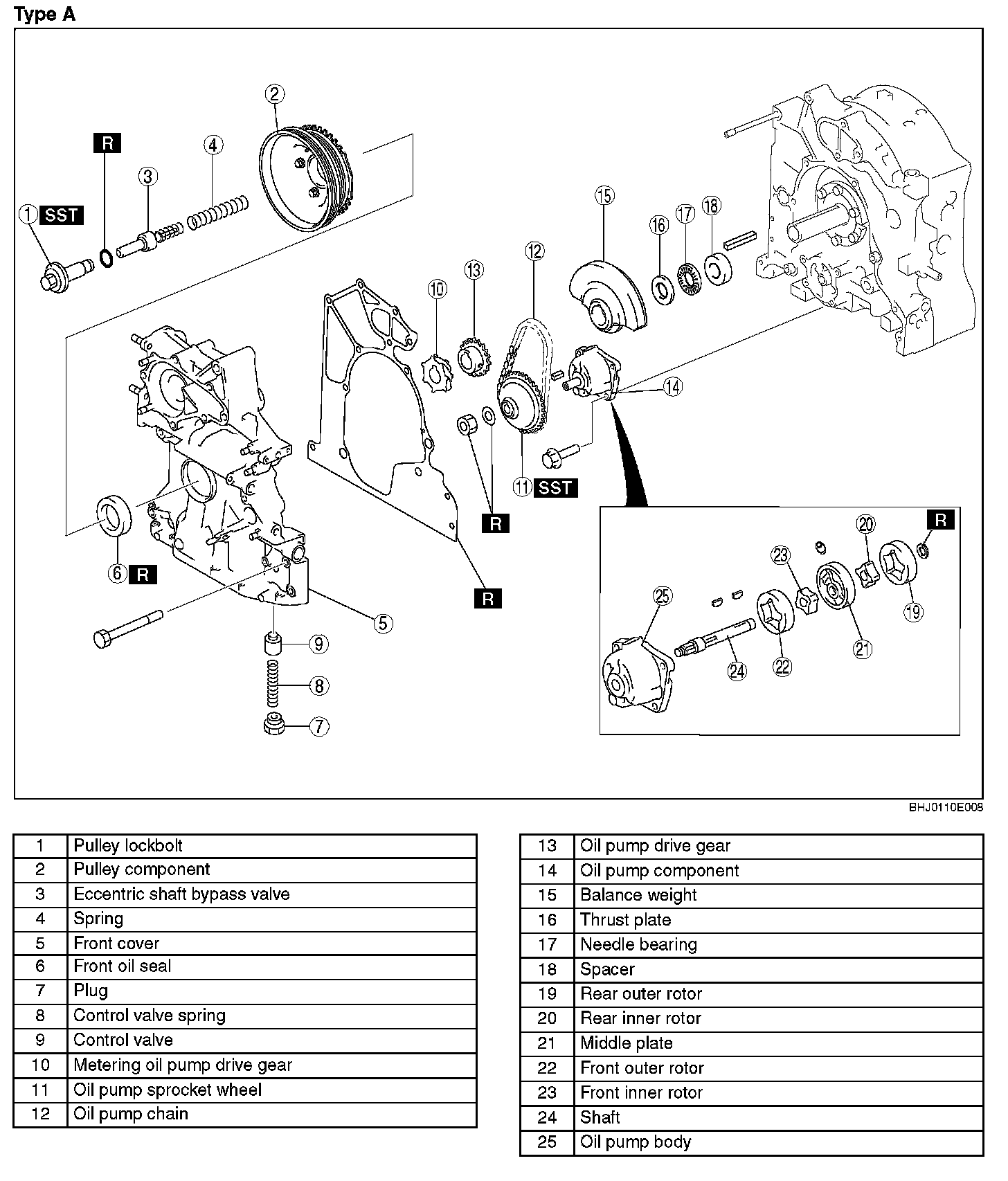

Type A

Housing Disassembly II (Part 1):

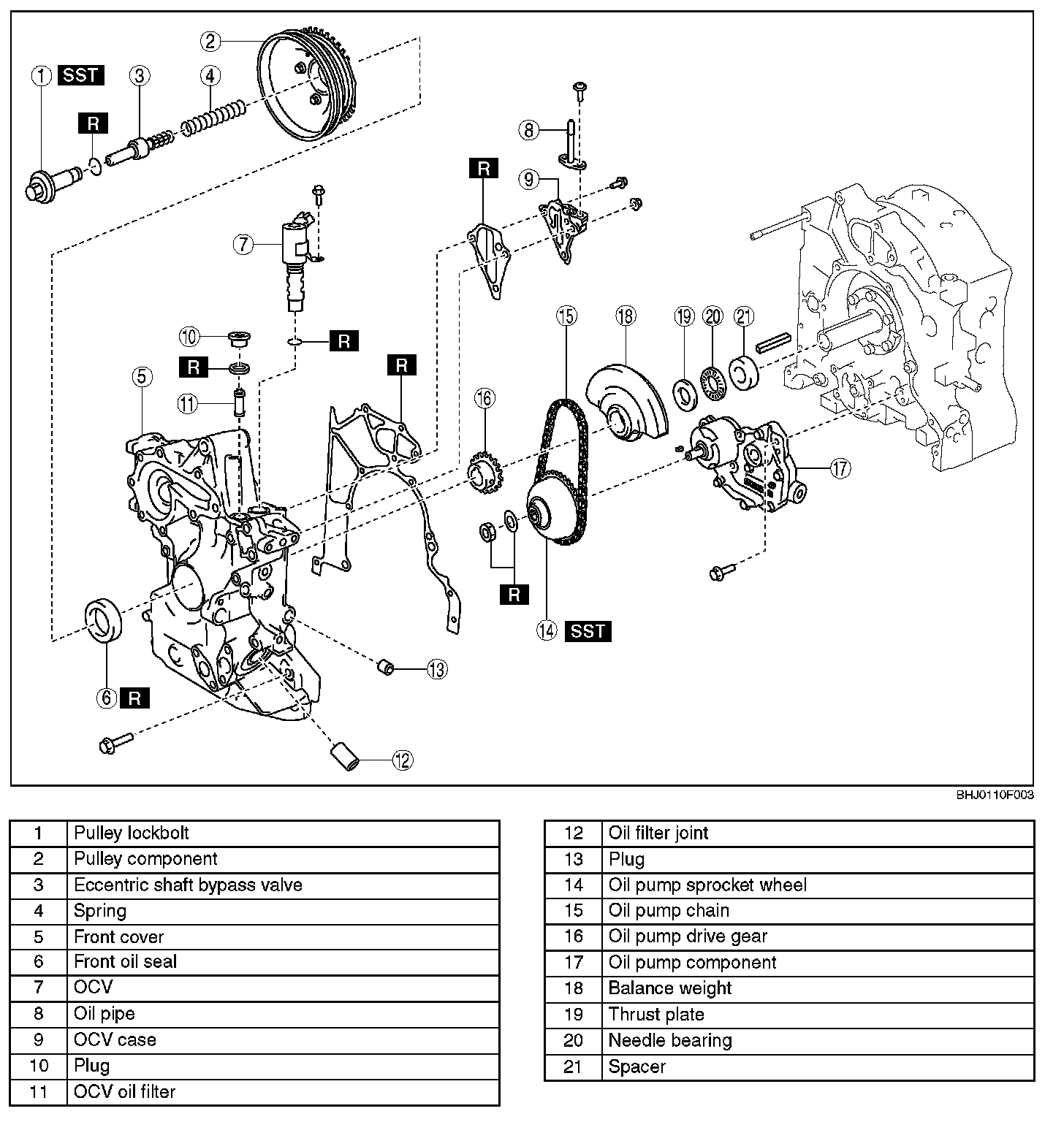

Type B

Housing Disassembly II (Part 2):
