CUT-OFF SEAL INSPECTION

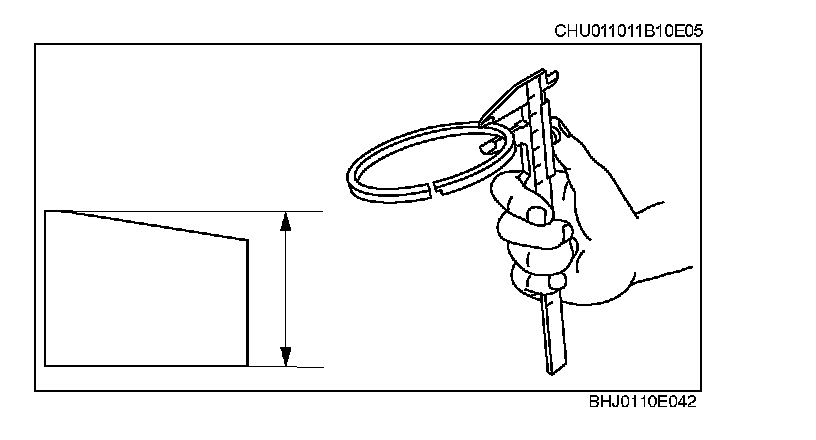

1. Measure the cut-off seal height using a vernier caliper.
^ If it is less than the minimum specification, replace the cut-off seal.

Caution
^ Measure the cut-off seal height around the complete perimeter.

Standard height
3.95 mm (0.1555 in)
Minimum height
3.8 mm (0.15 in)
