Apex Seal Inspection

APEX SEAL INSPECTION

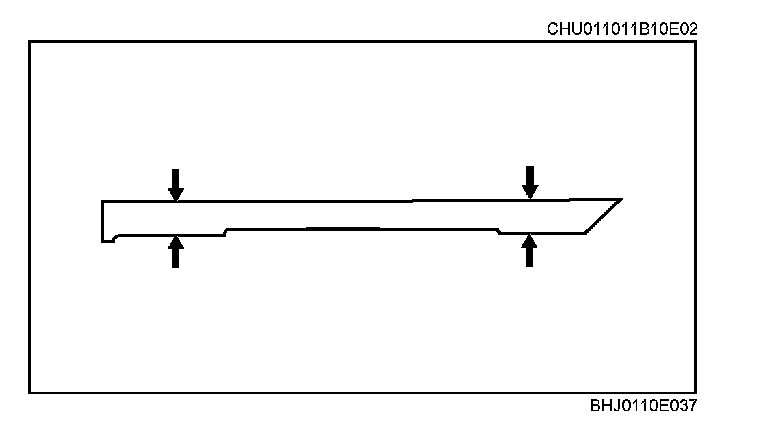

1. Measure the height in the positions shown in the figure.
^ If it is less than the minimum specification, replace the apex seal.
^ Replace the apex seal spring also whenever replacing the apex seal.

Standard Height
5.3 mm (0.20 in)
Minimum height
4.3 mm (0.17 in)
