Home
>>
Mazda
>>
2009
>>
RX8 2RTR-1.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Instrument Cluster/Instrument Cluster Illumination
Instrument Cluster/Instrument Cluster Illumination

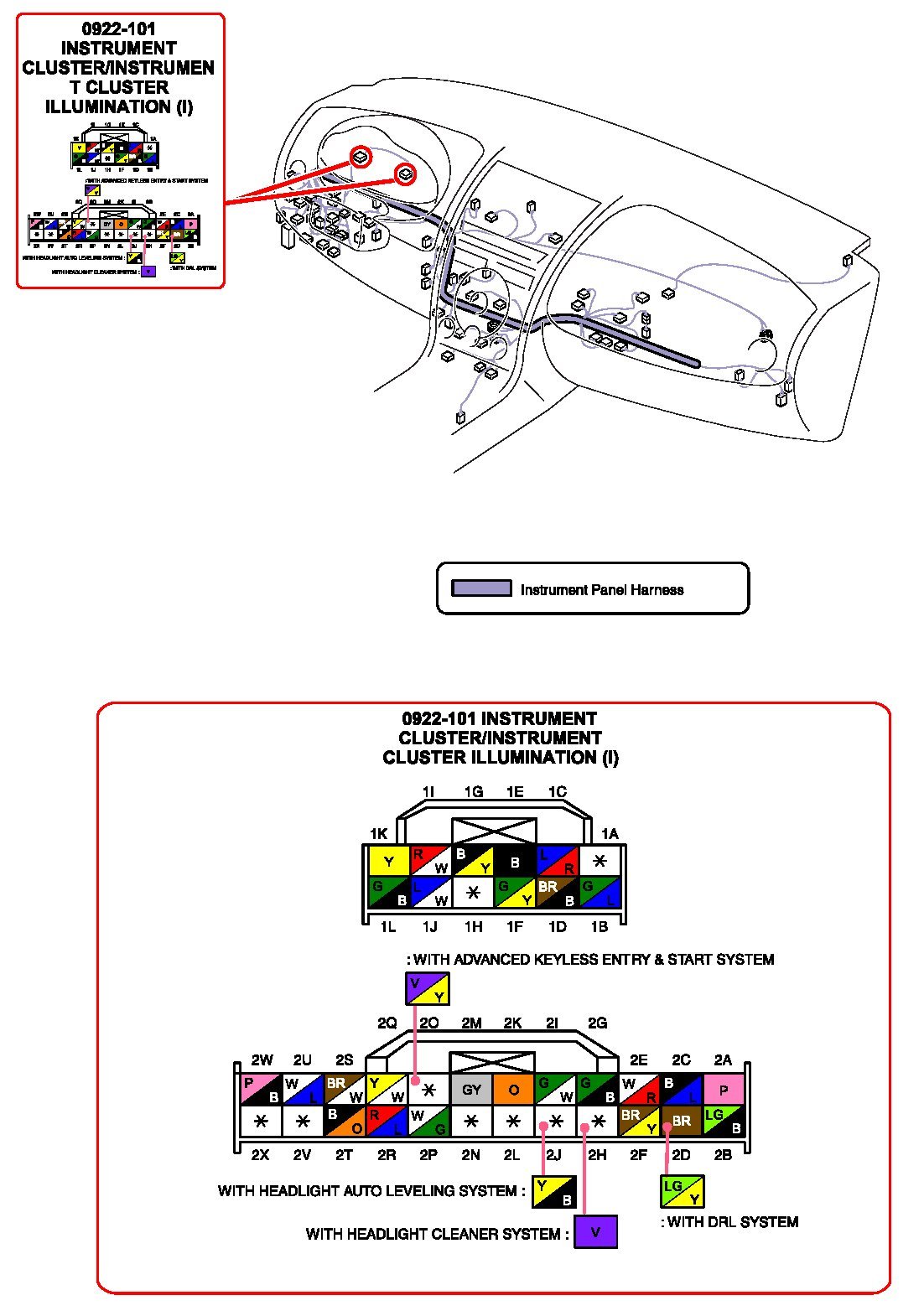

Instrument Cluster/Instrument Cluster Illumination:
