Interior - Driver's Seat Cushion Tilts Forward
Bulletin No: 09-018/10 Last Issued: 03/30/2010Subject:
DRIVER'S SEAT CUSHION TILTS FORWARD WHILE SEATED
APPLICABLE MODEL(S)NINS
2009-2010 RX-8 vehicles (cloth trimmed seats and manual seat lifter) with VINS JM1FE******400001~404477
(produced before February 1,2010)
DESCRIPTION
Some customer's may experience that the driver's seat cushion gradually inclines forward when seated with the seat lifter in the full up position. This is caused by inadequate mechanical strength of the rear link (A) on the seat adjuster unit. To increase the strength, the rear link on the seat adjuster unit has been hardened.
Customers having this concern should have their vehicle repaired using the following repair procedure.
REPAIR PROCEDURE
1. Ven~ customer concern.
2. Remove the dnver's front seat cushion pad. Refer to MS3 online instructions section 09-13 FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.
3. Remove the four seat cushion trim fixing bolts (A).
4. Detach the edge of the seat cushion trim from the seat cushion frame groove to remove the seat cushion frame, then replace the seat cushion frame with a new one.
5. Remove the dnver's seat back components. Refer to MS3 online instructions section 09-13 FRONT SEAT BACK COMPONENT [VEHICLES WITHOUT POWER SEAT SYSTEM] REMOVAL/INSTALLATION.
6. Replace the dnver's seat slide adjuster with a modified one.
7. Install in the reverse order of removal.
8. Verify repair.

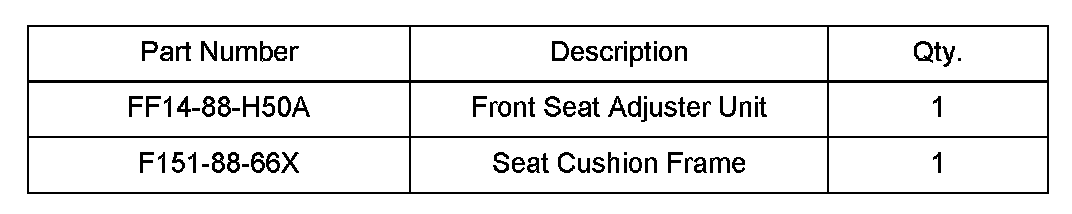

PART(S) INFORMATION

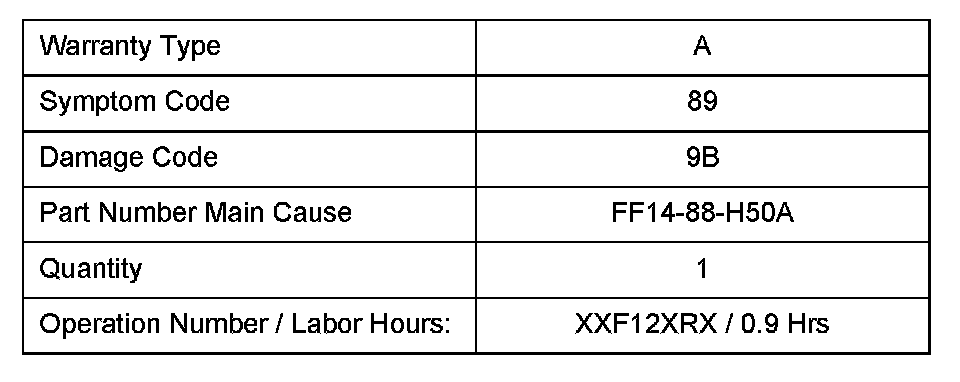

WARRANTY INFORMATION
NOTE:
^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.
^ This repair will be covered under Mazda's New Vehicle Limited Warranty term.
Additional diagnostic time cannot be claimed for this repair.
