Hood Striker: Service and Repair

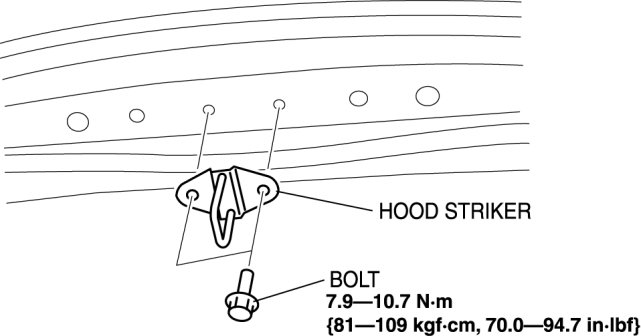

HOOD STRIKER REMOVAL/INSTALLATION

1. Remove the bolt, then remove the hood striker.

2. Install in the reverse order of removal.
