Rear Tweeter Inspection

REAR TWEETER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear seat Rear Seat Removal/Installation

b. Console Removal and Replacement

c. Tire house trim Tire House Trim Removal/Installation

d. Rear pillar trim Rear Pillar Trim Removal/Installation

e. Rear package side trim Service and Repair

f. Rear tweeter Rear Tweeter Removal/Installation

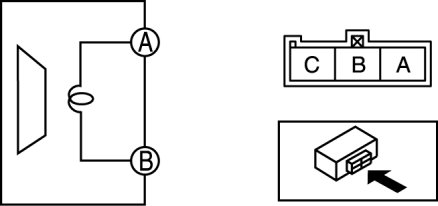

3. Verify the resistance between rear tweeter terminals.






- If the continuity is as indicated in the table, replace the rear tweeter.

Resistance
- 3.8 ohms
