Front Tweeter Inspection

FRONT TWEETER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front tweeter. Front Tweeter Removal/Installation

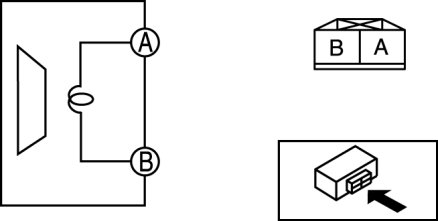

4. Verify the resistance between front tweeter terminals.






- If the continuity is as indicated in the table, replace the front tweeter.

Resistance
- 3.8 ohms
