Center Speaker Inspection

CENTER SPEAKER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the speaker grille. Speaker Grille Removal/Installation

3. Remove the center speaker. Center Speaker Removal/Installation

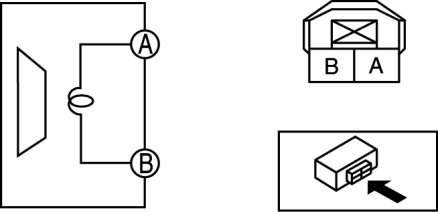

4. Verify the resistance between center speaker terminals.






- If the resistance is not within the specification, replace the center speaker.

Resistance
- 3.6 ohms
