Radio Tuner: Service and Repair

SIRIUS SATELLITE RADIO UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the trunk end trim. Trunk End Trim Removal/Installation

3. Remove the trunk side trim. (RH)

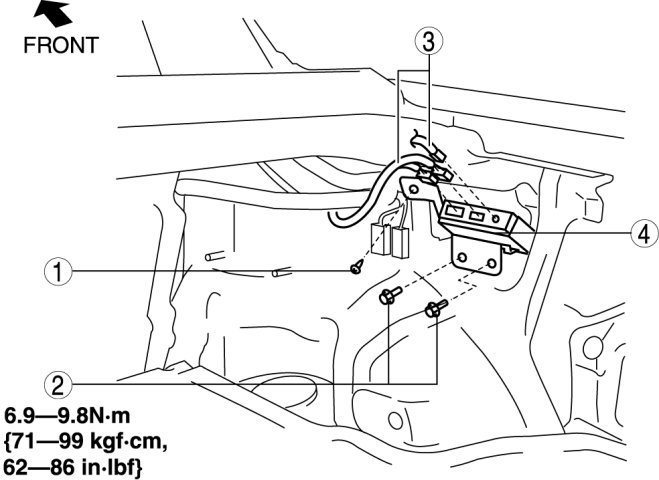

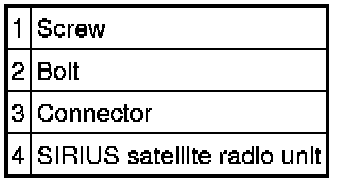

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
