Woofer Inspection




WOOFER INSPECTION

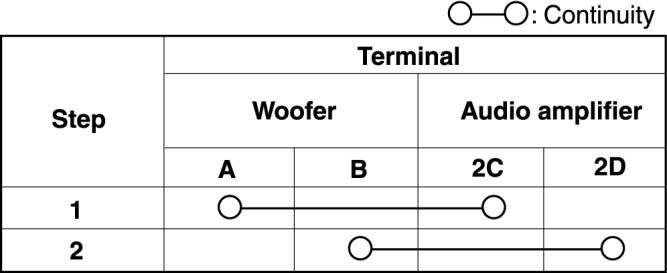

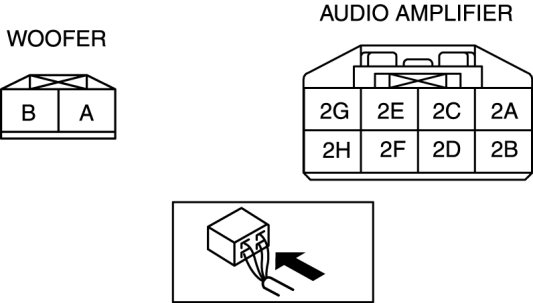

1. Verify that the continuity between the audio amplifier and woofer is as indicated in the table.






- If not as specified in the table, replace the related wiring harnesses.
