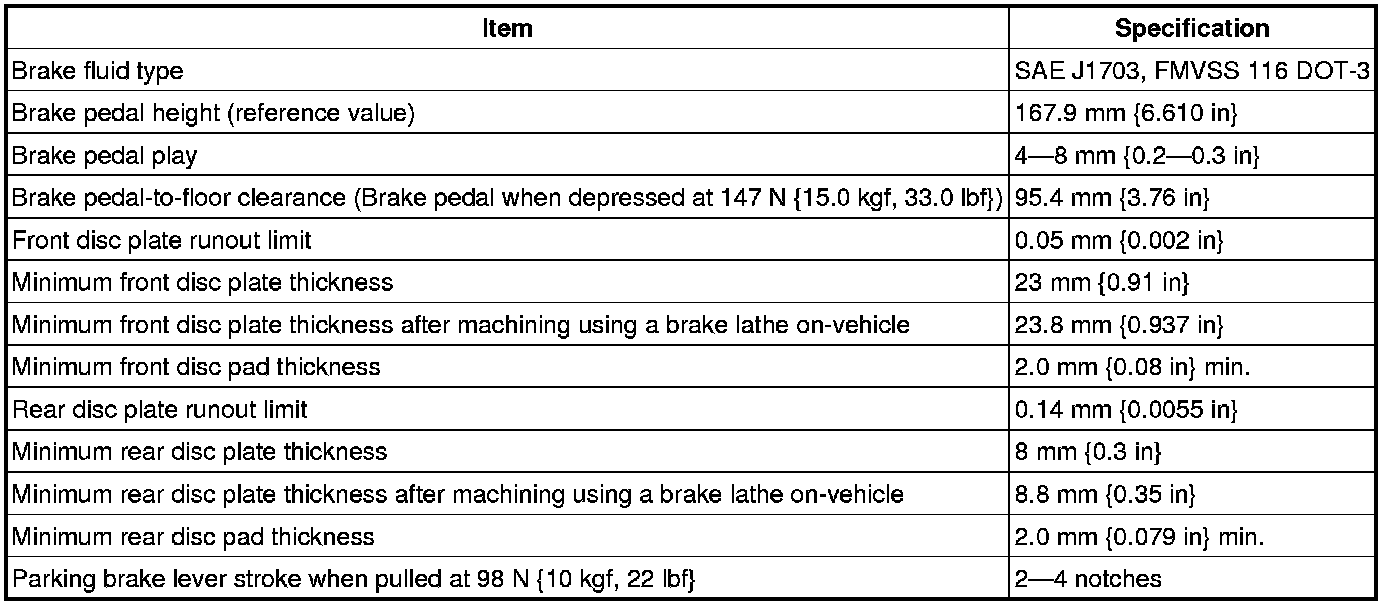

BRAKES TECHNICAL DATA

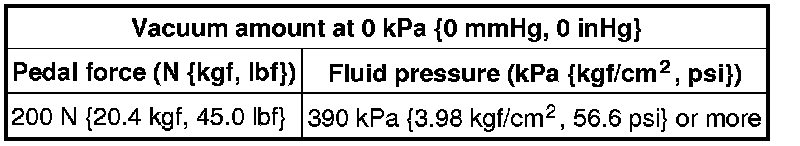

Standard power brake unit non-servo operation
Standard power brake unit servo operation
