Positive Crankcase Ventilation (PCV) Fitting Removal/Installation

POSITIVE CRANKCASE VENTILATION (PCV) FITTING REMOVAL/INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable. Removal and Replacement

2. Set the power steering fluid tank out of the way. (See Removal and Replacement.)

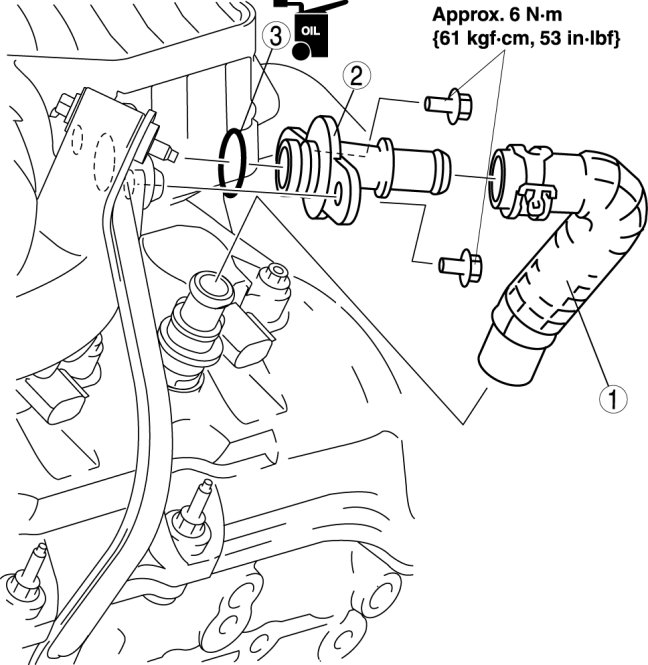

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
