How to Read System Circuit Diagrams
How to Read System Circuit Diagrams

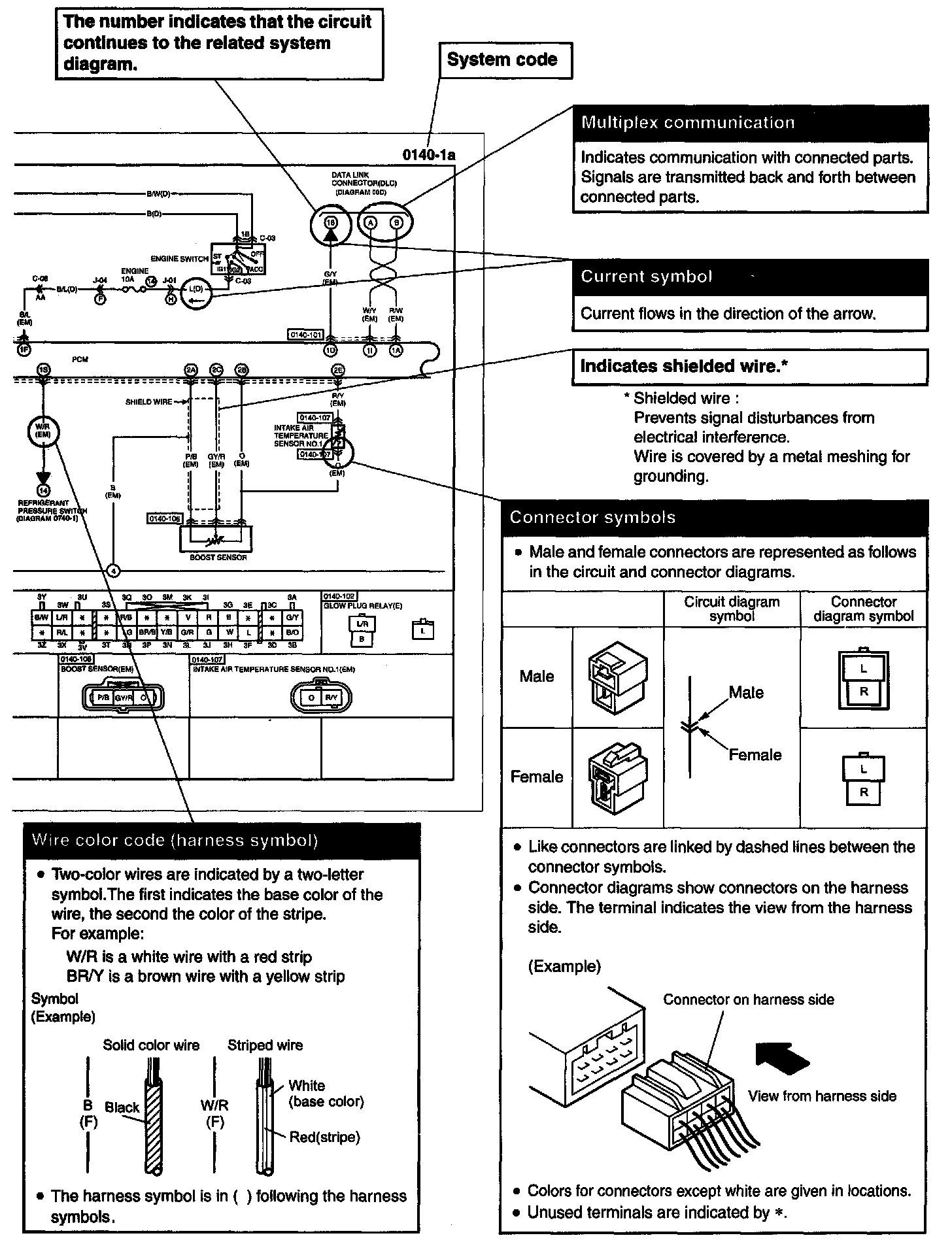

System Circuit Diagram/Connector Diagram (Part-2):
