Crank Lever Component and Crank Lever Shaft Assembly Note

Crank Lever Component and Crank Lever Shaft Assembly Note
1. Assemble the crank lever component to the change arm and control end.
2. Apply the specified oil to a new O-ring and install the O-ring to the crank lever shaft.





3. Assemble the crank lever shaft to the crank lever component.

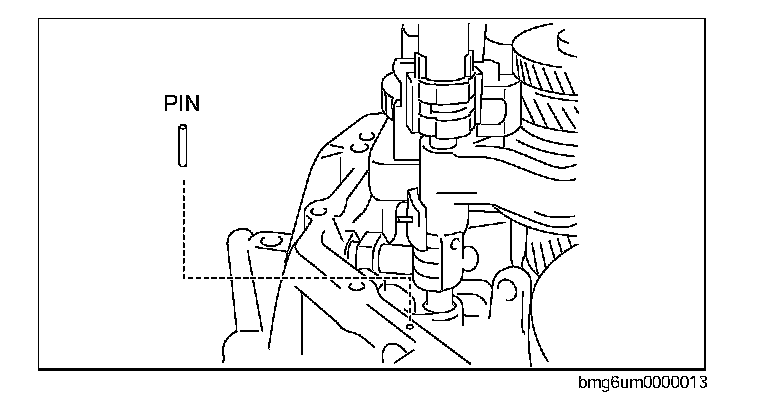

4. Using a flathead screwdriver, rotate the crank lever shaft so that the pin holes of the clutch housing and crank lever shaft are aligned, and then install a new spring pin.
