Removal and Replacement

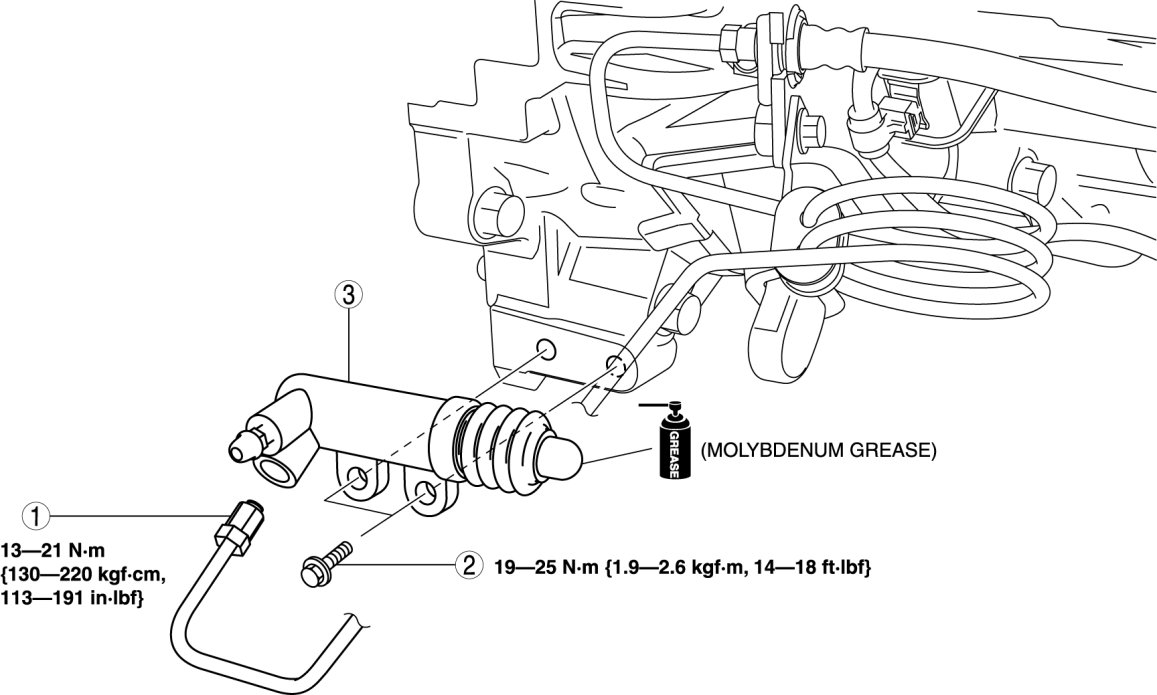

CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION

CAUTION:
- Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.

NOTE:
- If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.

1. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No.2 Removal/Installation

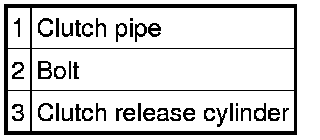

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.
