Oil Seal (Oil Pump) Replacement [AW6A-EL]

OIL SEAL (OIL PUMP) REPLACEMENT [AW6A-EL]

1. Remove the transaxle. Automatic Transaxle Removal/Installation [AW6A-EL]

CAUTION:
- The oil seal is easily damaged by the sharp edges of the torque converter splines. Do not let the splines contact the oil seal.
- Do not drop the torque converter.
- Do not pinch fingers.

2. Remove the torque converter. Service and Repair

CAUTION:
- Do not to damage the bushing on the oil pump body.

3. Using a tape-wrapped flathead screwdriver, remove the oil seal from the oil pump body.

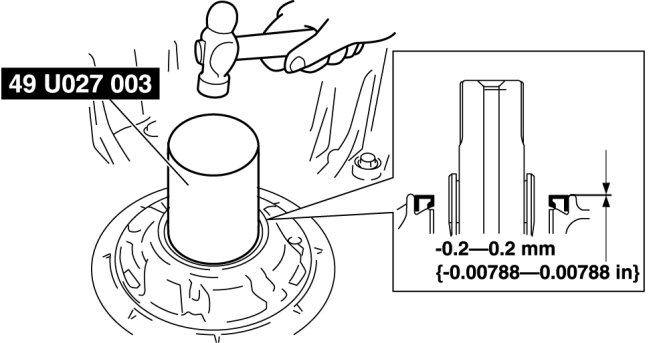

4. Using the SST and a hammer, install the oil seal to the oil pump body.






Substitution SST
- 49 U027 003
Outer diameter: 67 mm {2.64 in} or more
Inner diameter: 54-61 mm {2.13-2.40 in}
Plate thickness: 2 mm {0.08 in} or more

5. Coat the lip of the oil seal with grease.

6. Install the torque converter. Service and Repair

7. Install the transaxle. Automatic Transaxle Removal/Installation [AW6A-EL]

8. Perform the mechanical system test. AW6A-EL Transmission
