Canister Purge Solenoid: Testing and Inspection

PURGE SOLENOID VALVE INSPECTION [L5]

Airflow inspection

1. Disconnect the negative battery cable.

2. Remove the purge solenoid valve.

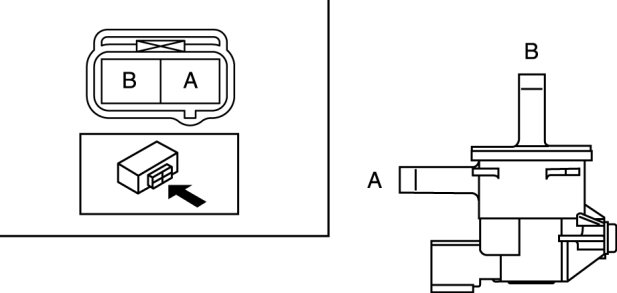

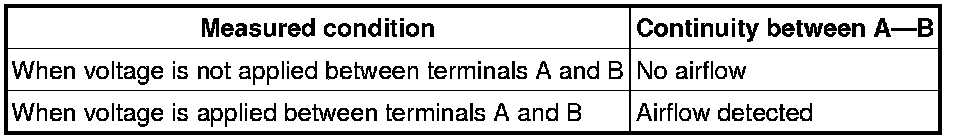

3. Inspect airflow between the ports under the following conditions.






- If not as specified, replace the purge solenoid valve. Service and Repair
