Second-Row Buckle Removal/Installation

SECOND-ROW BUCKLE REMOVAL/INSTALLATION

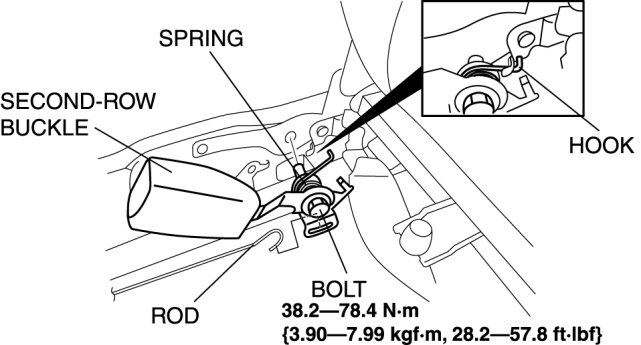

1. Remove the second-row seat. Second-Row Seat Removal/Installation

2. Remove the seat under tray. Second-Row Seat Disassembly/Assembly

3. Remove the bolt.






4. Detach the spring hook.

5. Detach the rod.

6. Install in the reverse order of removal.
