Heating and Air Conditioning: Description and Operation




HVAC SYSTEM WIRING DIAGRAM

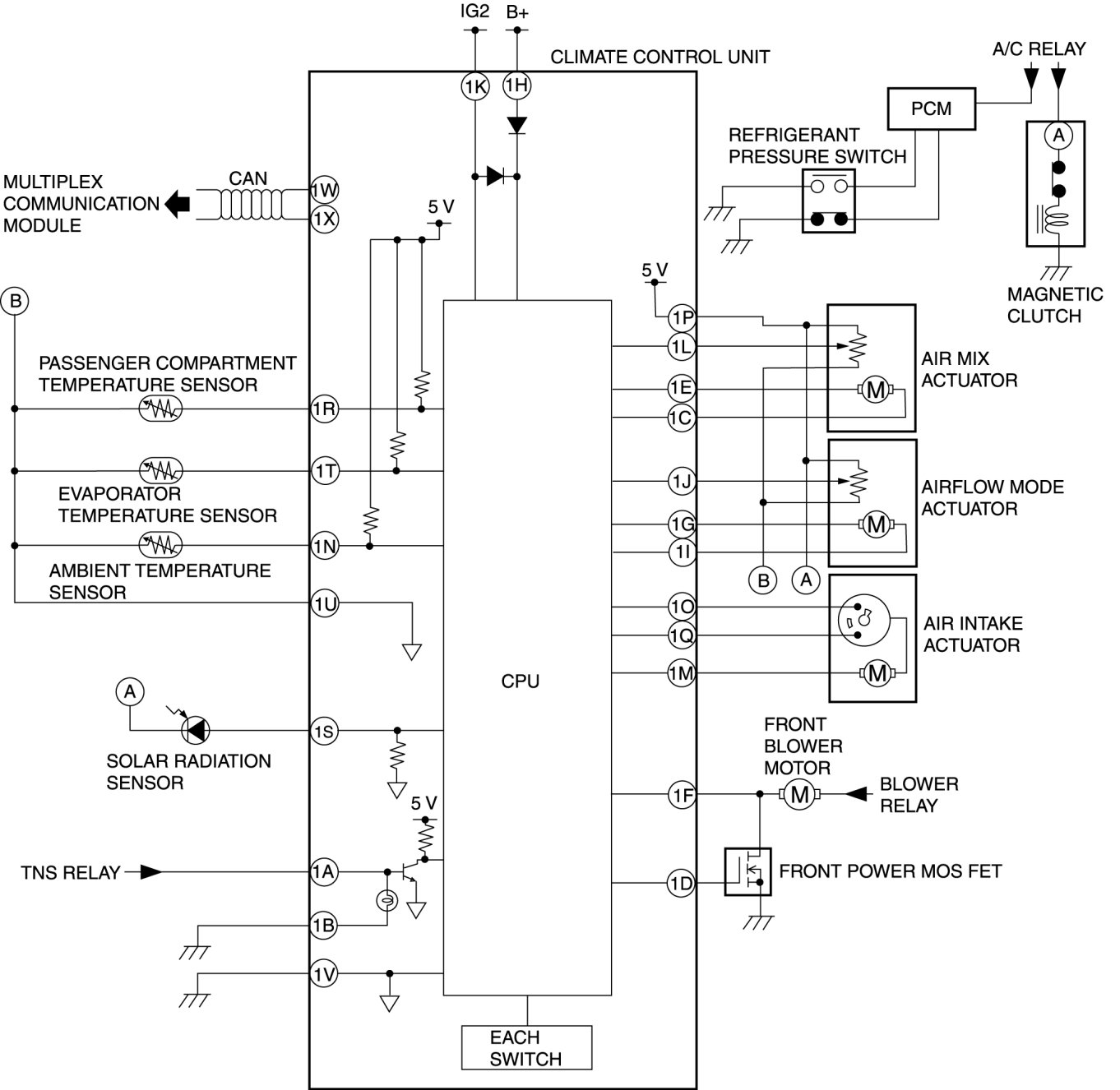

Full-Auto Air Conditioner

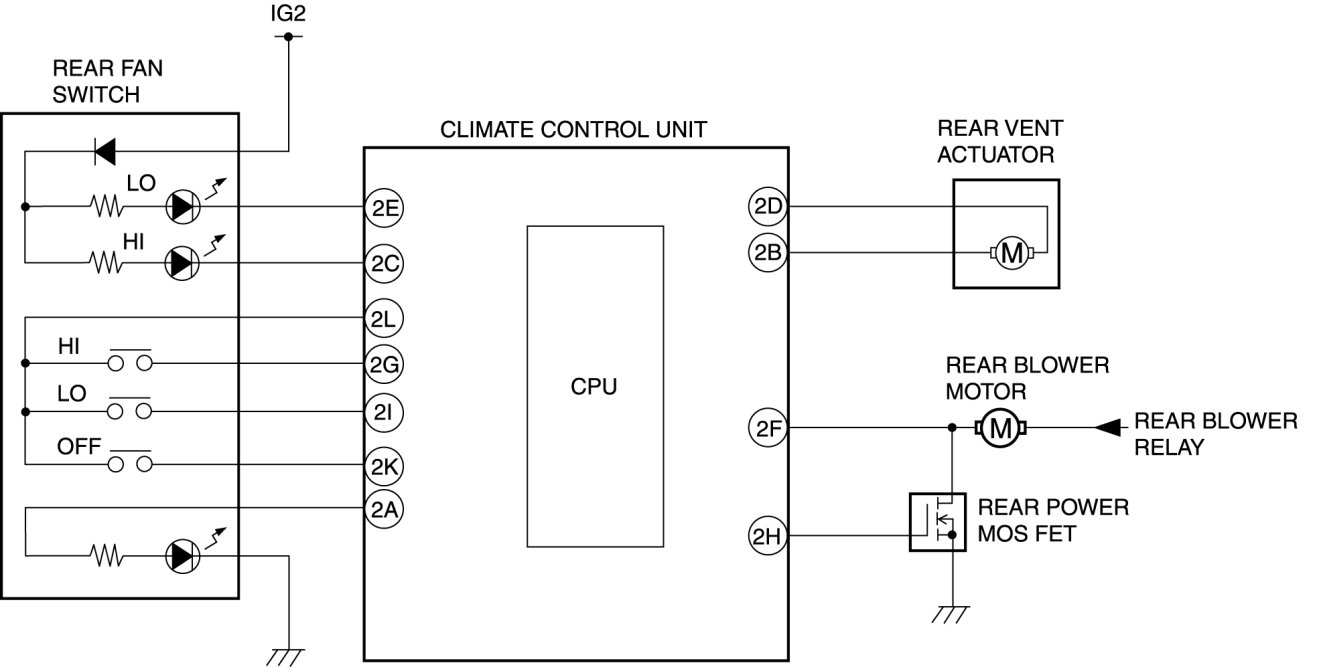

Rear Vent
