Rear Blower Motor Removal/Installation [Full-Auto Air Conditioner]

REAR BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the center console Center Console Removal/Installation

3. Remove the rear blower unit Rear Blower Unit Removal/Installation (Basic System)

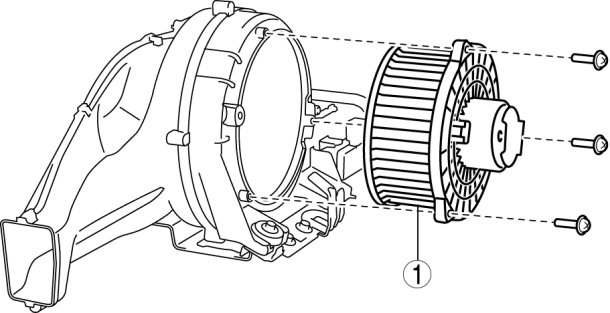

4. Remove in the order indicated table.










5. Install in the reverse order of removal.
