FRONT BLOWER MOTOR INSTALLATION [MANUAL AIR CONDITIONER]

1. Install the SST to the blower motor. [Manual Air Conditioner]

2. Install the blower motor with the SST (49 B061 015) installed, to the A/C unit.

3. Install the blower motor cover from the driver's side.

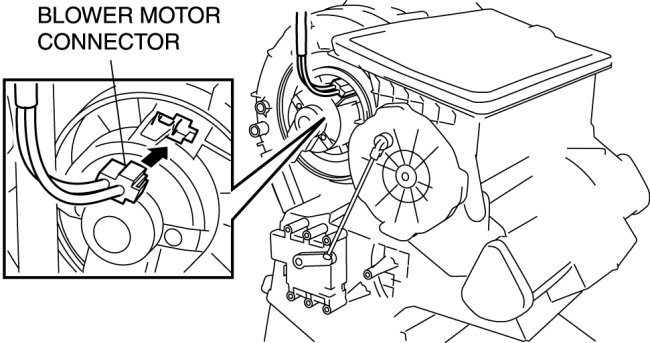

4. Connect the blower motor connector as shown in the figure.






5. Install the blower motor cooling pipe.






6. Remove the SST (49 B061 015) from the blower motor.

7. Install the air guide.

CAUTION:
- Install the blower case while pressing the dashboard insulator, otherwise the blower case could be damaged.

8. Temporarily install the blower case.

9. Connect the air intake actuator connector.

10. Install the blower case.

11. Install the following parts:
a. Brake pedal Service and Repair

b. Accelerator pedal Service and Repair

c. Lower panel Lower Panel Removal/Installation

d. Hood release lever Service and Repair

e. BCM harness grommet

f. HF/TEL unit Service and Repair

g. Glove compartment Service and Repair

h. Side panel (passenger's side) Side Panel Removal/Installation

i. Front side trim (passenger's side) Front Side Trim Removal/Installation

j. Front scuff plate inner (passenger's side) Front Scuff Plate Removal/Installation

k. Front console Front Console Removal/Installation

l. Shift lever component (MTX) Service and Repair

m. Selector lever component (ATX) Service and Repair

n. Side wall Side Wall Removal/Installation

Blower Motor Installation Note

1. Position the blower motor projection upward and install the blower motor to the A/C unit.

CAUTION:
- To prevent damage to the sirocco fan, install the blower motor being careful that the blower motor does not interfere with the A/C unit. Also, another person must hold the blower motor at the installation position.






Blower Motor Cover Installation Note

1. To install, rotate the blower motor cover until a click is heard.






Blower Case Installation Note

1. If not replacing the blower case, replace the adhesive polyurethane on the fresh-air inlet of the blower case.

CAUTION:
- To adhere new polyurethane properly, be sure to remove the adhesive agent and adhesive polyurethane completely.

NOTE:
- If the blower case is removed or installed, the adhesive polyurethane can be damaged. Damaged adhesive polyurethane could cause abnormal noise or other malfunctions, therefore replace it.






2. Insert the screw into the blower case.

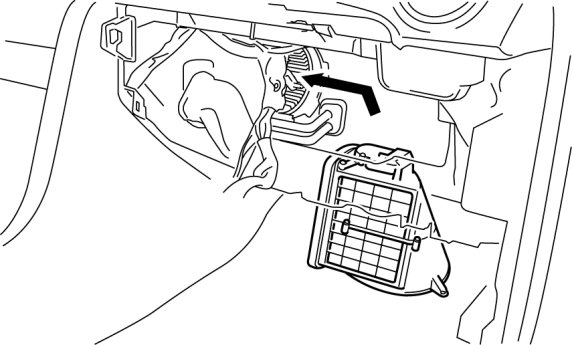

3. Insert the blower case in the direction shown in the figure.






4. Insert and rotating it in the directions of the arrows shown in the figure.
