[Full-Auto Air Conditioner]

FRONT BLOWER MOTOR INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Install the SST to the front blower motor. [Full-Auto Air Conditioner]

2. Install the front blower motor with the SST (49 B061 015) installed, to the A/C unit.

3. Install the front blower motor cover from the driver's side.

4. Connect the front blower motor connector as shown in the figure.

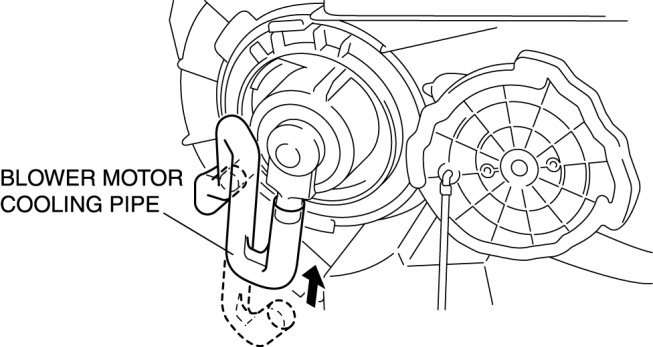

5. Install the front blower motor cooling pipe.






6. Remove the SST (49 B061 015) from the front blower motor.

7. Install the air guide.

CAUTION:
- Install the front blower case while pressing the dashboard insulator, otherwise the front blower case could be damaged.

8. Temporarily install the front blower case.

9. Connect the air intake actuator connector.

10. Install the front blower case.

11. Install the following parts:
a. Brake pedal Service and Repair

b. Accelerator pedal Service and Repair

c. Airflow mode actuator Airflow Mode Actuator Removal/Installation [Full-Auto Air Conditioner]

d. Lower panel Lower Panel Removal/Installation

e. Hood release lever Service and Repair

f. BCM harness grommet

g. HF/TEL unit Service and Repair

h. Glove compartment Service and Repair

i. Side panel (passenger's side) Side Panel Removal/Installation

j. Front side trim (passenger's side) Front Side Trim Removal/Installation

k. Front scuff plate inner (passenger's side) Front Scuff Plate Removal/Installation

l. Front console Front Console Removal/Installation

m. Shift lever component (MTX) Service and Repair

n. Selector lever component (ATX) Service and Repair

o. Side wall Side Wall Removal/Installation

Front blower Motor Installation Note

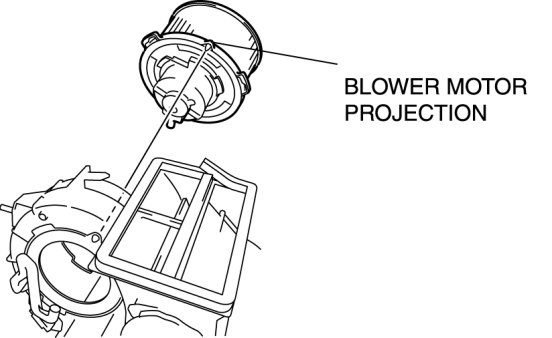

1. Position the front blower motor projection upward and install the front blower motor to the A/C unit.

CAUTION:
- To prevent damage to the sirocco fan, install the front blower motor being careful that the front blower motor does not interfere with the A/C unit. Also, another person must hold the front blower motor at the installation position.






Front blower Motor Cover Installation Note

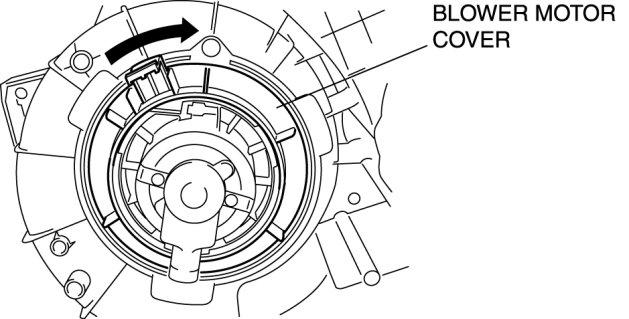

1. To install, rotate the front blower motor cover until a click is heard.






Front blower Case Installation Note

1. If not replacing the front blower case, replace the adhesive polyurethane on the fresh-air inlet of the front blower case.

CAUTION:
- To adhere new polyurethane properly, be sure to remove the adhesive agent and adhesive polyurethane completely.

NOTE:
- If the front blower case is removed or installed, the adhesive polyurethane can be damaged. Damaged adhesive polyurethane could cause abnormal noise or other malfunctions, therefore replace it.

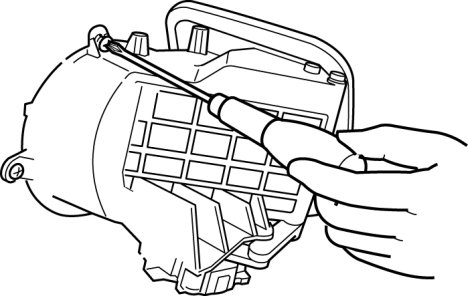

2. Insert the screw into the front blower case.

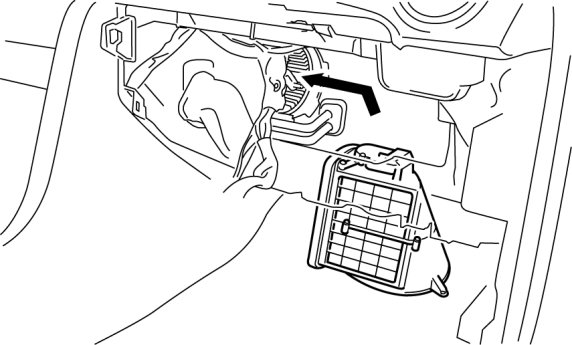

3. Insert the front blower case in the direction shown in the figure.

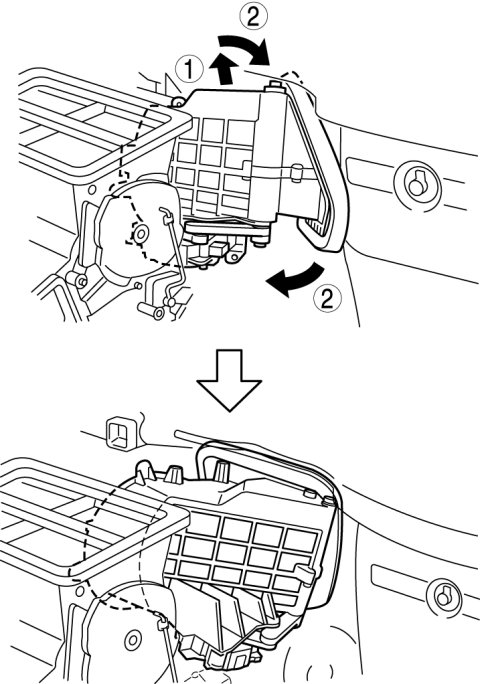

4. Insert and rotating it in the directions of the arrows shown in the figure.
