Radiator Cooling Fan Motor: Testing and Inspection

FAN MOTOR INSPECTION [L3]

Part Inspection

1. Verify that the battery is fully charged.

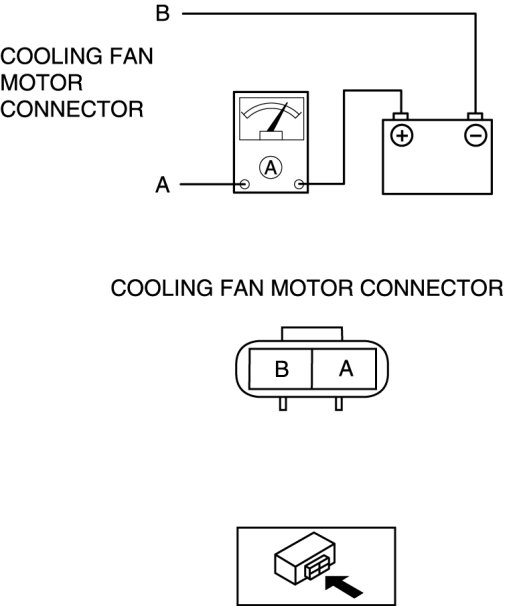

2. Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.






3. Verify that fan motor operates smoothly at the standard current.

- If there is any malfunction, replace the applicable part.

Cooling fan motor current
- 17-23 A
