Quick Diagnostic Chart (Radio)

FOREWORD [RADIO]

NOTE:
- If location, time, and broadcasting station etc. can be specified through interview with customer, more than likely the signal environment is causing the problem.
- Perform confirmation of symptom and evaluation under conditions that customer reported (location, time, broadcasting station etc.). If not possible, perform it under equivalent conditions.
- Before inspection or repair, record the broadcasting stations that customer preset and reset them accordingly after the inspection or repair. Adjust the clock too.

Quick Diagnostic Chart (Radio)

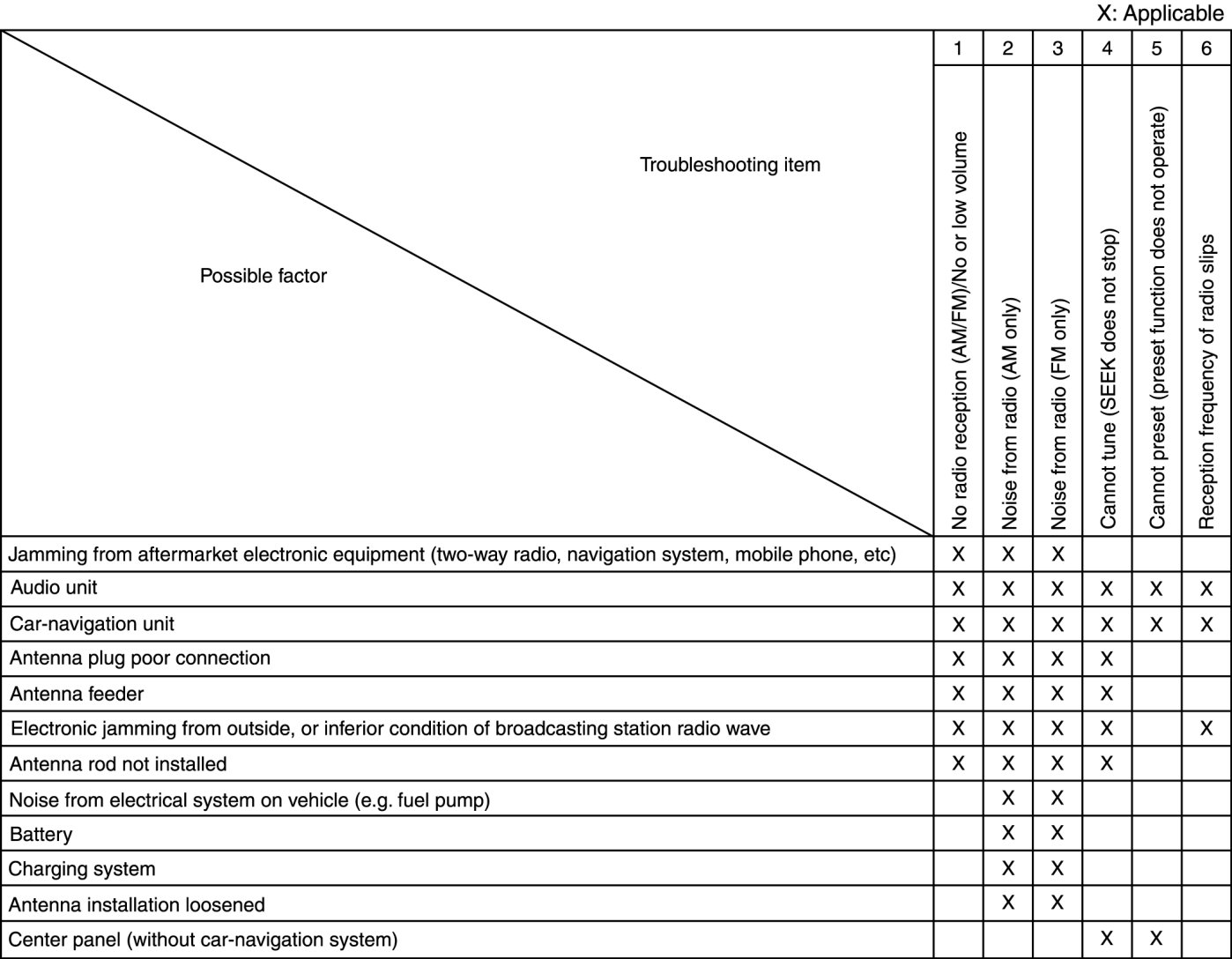

Quick Diagnostic Chart:
