Clutch Slave Cylinder: Service and Repair

CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION

CAUTION:
- Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.

1. Remove the under cover.

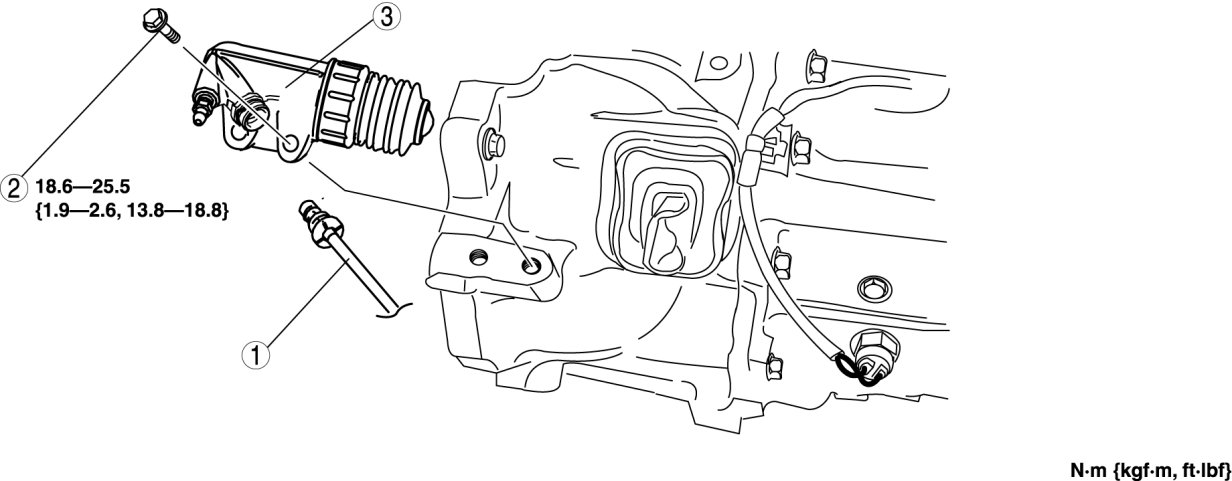

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. Bleed the air from the system. Service and Repair

5. After installation, inspect the clutch pedal. Testing and Inspection










Clutch Pipe Removal Note

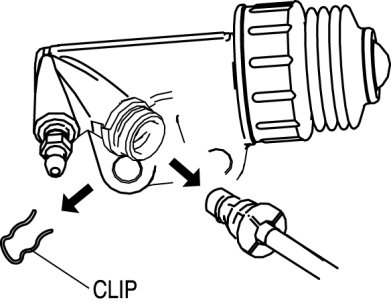

1. Pull out the clip and, then pull out the clutch pipe connector straight to detach it.






Clutch Pipe Installation Note

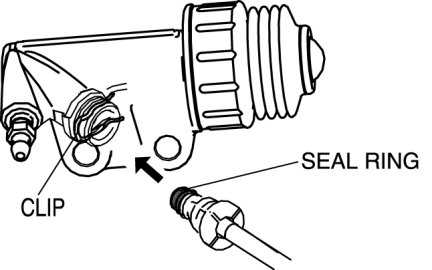

1. Return the clip to the position shown in the figure.

CAUTION:
- Verify that there is no chipping, damage, or falling off of the seal ring in the clutch pipe connector.






2. Insert the clutch pipe connector straight.

3. Pull the clutch pipe to verify that it does not come off, and reinsert it completely.
